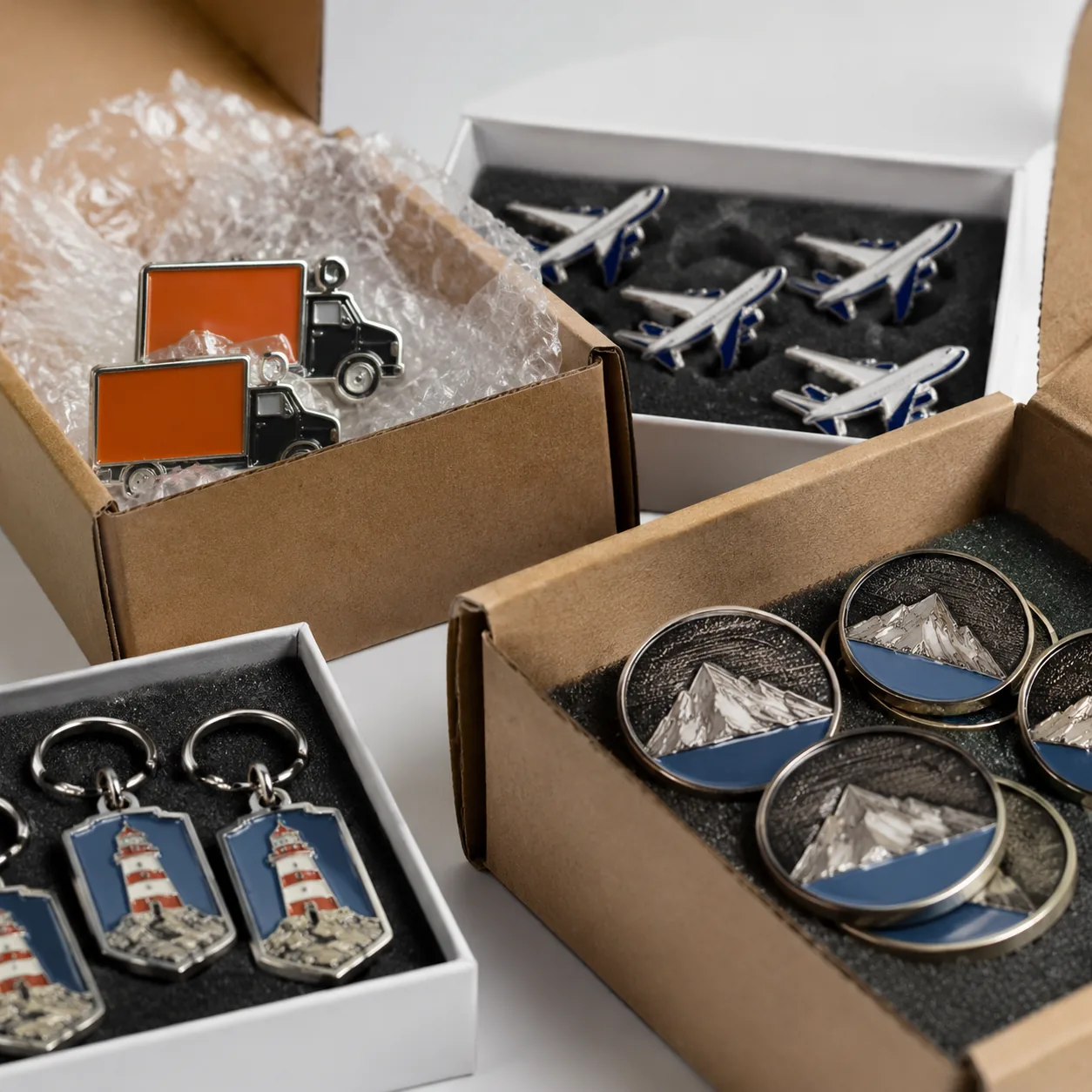

Split-Ship Promo Orders: Specs That Prevent Mix-Ups

Q: When does a promo order need split-ship controls?

Use split-ship controls whenever one production run will be packed for more than one destination, sales region, event day, retail channel, kit version or language market. The item may be simple, such as a 30 mm soft-enamel pin, but the risk starts when 12 near-identical versions must be separated after stamping or casting, polishing, plating, enamel filling, curing, attachment, carding, bagging and carton sealing. A generic instruction such as 100 pcs per inner bag and 1,000 pcs per carton does not control a job where 37 cartons must ship to six addresses with different inserts, labels and delivery dates.

The risk rises when products share the same base artwork but differ by plating, Pantone fill, attachment, backing card, barcode, legal text or event location. A gold-plated pin and a black-nickel pin can be confused under warehouse lighting if the carton label only says custom pin. The control point is a frozen packing matrix before mass production starts. Correcting mixed cartons after final inspection can cost USD 0.05 to 0.20 per piece in recount labor, relabeling and repacking, before any freight delay or missed event cost is counted.

• Use split-ship specs for multi-location deliveries, sales rep allocations, event kits, retail display batches, language versions and phased launch dates.
• Issue a packing matrix with SKU code, thumbnail, approved quantity, unit pack, inner pack, master carton rule, destination and target ship date.
• Keep one SKU per inner bag and one destination per master carton unless a mixed-carton rule is approved in writing.
• Lock cosmetic specs at the same time: size tolerance, thickness tolerance, plating target, attachment type and approved packaging artwork.
• Treat destination changes after carton sealing as a controlled change requiring recount, relabeling and written approval.

Q: What should the SKU code identify?

A useful SKU code lets a packer, inspector, freight forwarder and receiving clerk identify the item without opening the carton. For custom metal promo items, use a fixed sequence: project code, item type, size, finish, attachment, pack version and destination code. For example, ACME24-PIN30-GD-BFLY-CARD-USNY identifies a 30 mm gold-color pin with butterfly clutch, backing card and New York allocation. The code is short enough for carton labels but specific enough to prevent substitution.

Avoid artwork-only names such as logo pin final, coin V3 or blue version. Those names help designers but do not control production because they omit plating, hardware and packaging differences. If the order has 8 to 20 versions, every SKU row should include one 25 to 40 mm thumbnail, one approved quantity, one destination code and one label text. For reorders, keep the same product SKU unless a physical spec changes; if only the ship-to location changes, revise the allocation field, not the product code.

SKU Field	Example	Control Purpose
Project code	ACME24	Groups all SKUs under one PO and separates the job from other factory orders.
Item and size	PIN30 or COIN45	Prevents 30 mm pins, 45 mm coins and other formats from being counted together.
Finish	GD, BN, AN, DYED	Controls gold color, black nickel, antique nickel and dyed-metal versions.
Attachment	BFLY, RUB, MAG, SPLIT	Identifies butterfly clutch, rubber clutch, magnet or split-ring hardware.
Pack version	BAG, CARD, BOX, KIT	Shows whether the item is loose packed, carded, boxed or assembled into a kit.
Destination	USNY, UKLDN, DEDUS	Links the carton to the freight booking, receiving site and delivery schedule.

Q: How should inner packing be specified?

Inner packing is where most split-ship errors begin. For enamel pins and brooches, a common structure is 1 pc per 40 to 60 micron OPP bag, then 50 or 100 pcs per larger inner bag. Use 25 pcs per inner bag when the pin has long posts, sharp edges, epoxy domes or oversized cards. For challenge coins, use 1 pc per PVC pouch, capsule or paper sleeve, then 25 to 50 pcs per inner box; loose coins can rub through decorative plating during transit. For metal keychains, 50 pcs per inner bag works for smooth hardware, but reduce to 25 pcs for spinner parts, painted surfaces or zinc alloy pieces over 45 g each.

Backing cards require tighter control because they are both packaging and a brand surface. Common cards are 300 to 400 gsm C1S or C2S paper, with ±1 mm cutting tolerance and ±1.5 mm hole-position tolerance against the approved dieline. If the card carries a barcode, QR code, retail price, CE/UKCA mark, choking warning or country-of-origin text, specify it before printing. A warehouse-applied barcode often ends up in the wrong corner, on a curved bag surface or partly covered by the OPP seal.

• Specify unit pack: 1 pc per OPP bag, paper sleeve, PVC pouch, backing card, velvet pouch, acrylic box or gift box.
• Specify inner count: 25, 50 or 100 pcs per inner bag or box based on scratch risk, item weight and receiving count method.
• Specify bag thickness: 40 to 60 microns for standard OPP bags, or 70 to 90 microns for heavier coins and sharp-edged metal parts.
• Specify card tolerances: ±1 mm cutting, ±1.5 mm hole position, no visible cracking on folds and barcode scan pass before packing.
• Specify moisture controls: sealed poly liners for paper packaging and 5 g to 10 g silica gel per inner box when humidity or transit time justifies it.

Q: What carton rules keep freight and receiving clean?

Master cartons should be countable without opening every box. For pins, patches and lanyards, 35 x 30 x 25 cm or 40 x 30 x 30 cm cartons are common, with gross weight kept under 15 kg where possible. For challenge coins and heavy zinc alloy keychains, keep gross weight under 12 kg because a 45 mm coin weighing 35 to 45 g becomes heavy quickly. If a warehouse has inbound rules, state maximum carton weight, accepted dimensions, pallet requirement, label position, barcode format and ASN data before the factory books freight.

Do not approve mixed-SKU cartons unless the quantity is small and the carton has a clear internal divider list. A mixed carton may save one to three cartons of freight, but it slows receiving and increases shortage claims. For split shipments, the cleaner rule is one destination per master carton and one SKU per carton whenever the order size allows it. If one SKU must be split across destinations, number cartons by destination, such as USNY 1 of 4 and UKLDN 1 of 2, not 1 of 6 across the whole order.

Product Type	Typical Master Carton	Safe Gross Weight	Common Case Pack
Enamel pins on cards	40 x 30 x 30 cm	10 to 14 kg	500 to 1,000 pcs depending on card size
Loose metal keychains	35 x 30 x 25 cm	10 to 12 kg	250 to 500 pcs depending on part weight
Challenge coins	30 x 25 x 20 cm	10 to 12 kg	200 to 500 pcs depending on diameter and box type
Embroidered patches	45 x 35 x 30 cm	8 to 12 kg	1,000 to 3,000 pcs depending on patch size
Lanyards	50 x 40 x 35 cm	12 to 15 kg	500 to 1,000 pcs depending on hook and badge holder
Fridge magnets	40 x 30 x 25 cm	10 to 14 kg	500 to 1,500 pcs depending on magnet thickness

Q: What tolerances and AQL checks belong in the plan?

Packing specs should sit beside product specs, not replace them. For stamped iron or brass pins, specify outside size tolerance of ±0.3 mm and thickness tolerance of ±0.2 mm. For cast zinc alloy keychains or coins, ±0.5 mm on outside dimensions is more realistic because shrinkage and polishing vary by mold and geometry. For backing cards, use ±1 mm cutting tolerance and ±1.5 mm hole-position tolerance. For enamel, define overflow, underfill, pinholes and dust as defects visible at 30 cm under 600 to 800 lux normal light, not under magnification unless the product is premium retail.

Plating must also be defined. Decorative precious-metal flash is often 0.03 to 0.05 microns over nickel or copper underlayers. Upgraded wear-focused plating may target 0.10 to 0.20 microns, depending on finish, base metal and budget. For products touching skin or intended for children, specify nickel-free, low-nickel, CPSIA, EN 71-3 or REACH requirements separately; a gold color does not automatically mean the item is nickel-free or compliant.

Inspection should use AQL language rather than subjective wording such as check carefully. A practical default for promotional orders is ANSI/ASQ Z1.4 or ISO 2859-1, General Inspection Level II, AQL 2.5 for major defects and AQL 4.0 for minor defects. Critical defects should be zero tolerance. Major defects include wrong SKU in carton, wrong attachment, unreadable barcode, missing backing card, mixed destination, broken hardware, failed magnet function or visible logo damage. Minor defects include light bag wrinkles, small label scuffs or a slightly angled sticker that still scans.

• Product checks: dimensions, thickness, finish, enamel color, logo position, backstamp, attachment pull strength and moving-part function.
• Packing checks: unit count, inner bag count, carton count, SKU label, destination label, barcode scan and carton sequence number.
• AQL default: General Level II, AQL 2.5 major, AQL 4.0 minor, with zero tolerance for safety or mixed-destination critical defects.
• Tolerance examples: ±0.3 mm for stamped pins, ±0.5 mm for cast zinc alloy, ±0.2 mm thickness and ±1 mm backing-card cut.
• Hold point: approve one fully packed carton photo per SKU and destination before sealing the full batch.

Q: What do MOQ tiers and FOB prices look like?

Split packing is not free, but it is usually cheaper than repacking at a third-party warehouse. Simple destination labels may add USD 0.00 to 0.01 per piece, and individual OPP bags usually add USD 0.01 to 0.03 per piece. Printed backing cards add about USD 0.04 to 0.12 per piece depending on size, paper weight, print coverage and hole punching. Kraft boxes, velvet pouches, acrylic boxes or rigid gift boxes typically add USD 0.15 to 0.80 per piece. Multi-item kit assembly often adds USD 0.08 to 0.35 per kit in labor before packaging material cost.

MOQ is usually 100 pcs per design for pins, keychains and coins, but split-ship efficiency improves at 300 to 500 pcs per SKU because setup, counting and carton labeling are spread across more units. Lanyards are more efficient at 300 to 500 pcs per design, especially with sublimation, custom woven logos or metal accessories. If the buyer needs 80 pcs each to six offices, production may be feasible, but the packing cost per piece and inspection time will be higher than one 500 pc allocation.

Item or Packing Task	MOQ or Efficient Tier	Typical FOB Range
25 to 35 mm soft-enamel pin	100 pcs minimum; 500+ pcs efficient	USD 0.35 to 0.95 per pc
40 to 50 mm zinc alloy keychain	100 pcs minimum; 300+ pcs efficient	USD 0.55 to 1.60 per pc
45 mm challenge coin	100 pcs minimum; 300+ pcs efficient	USD 1.20 to 3.50 per pc
Embroidered patch	100 pcs minimum; 500+ pcs efficient	USD 0.25 to 1.20 per pc
20 mm polyester lanyard	300 pcs minimum; 500+ pcs efficient	USD 0.35 to 1.10 per pc
Kit assembly labor	100 kits minimum; 500+ kits efficient	USD 0.08 to 0.35 per kit

Q: How does split shipping affect lead time?

Production lead time is usually driven by tooling, sample approval, plating, enamel, printing and curing, not just by carton labels. For standard enamel pins, keychains and coins, plan 7 to 10 days for artwork confirmation and tooling, 5 to 7 days for a pre-production sample if required, and 12 to 25 days for mass production after approval. Patches and lanyards can be faster at 10 to 18 days after artwork approval when yarn, webbing and hardware are standard. Packaging complexity can add 2 to 7 days, especially when printed cards, barcodes, retail boxes or kits require separate proofing.

Split shipping also affects freight booking. Express service commonly takes 3 to 7 days after pickup. Air freight usually takes 7 to 12 days including handover and customs. Sea freight commonly requires 25 to 45 days depending on port pair, sailing schedule, customs clearance and final delivery. If destinations have different deadlines, do not wait for the whole order if one urgent allocation can ship first. Pack destination lots separately at the factory, then choose either one consolidated export shipment or multiple direct shipments based on freight cost and delivery risk.

• Approve artwork and packing matrix together before sample production to avoid rework.
• Add 2 to 3 days for simple barcode labels, destination labels and carton sequencing.
• Add 4 to 7 days for printed backing cards, gift boxes or assembled multi-item kits.
• Avoid destination changes after carton sealing because reopening cartons creates recount risk and labor charges.
• For events, target factory completion at least 10 days before an express deadline or 45 days before a sea-freight deadline.

What to do next: freeze the packing matrix before sampling

The best time to control split shipments is before the first sample, not after mass production is finished. Ask the supplier to confirm product specs, packaging specs and destination allocations in one document. The matrix should include SKU code, artwork thumbnail, size, material, plating or fabric spec, attachment, unit pack, inner pack, master carton rule, label text, destination, approved quantity and target ship date. If the supplier cannot confirm these fields clearly, expect packing questions during production or disputes after delivery.

Request a packed-sample photo, not only a product photo. For a pin order, the photo set should show the front, back, attachment, backing card, OPP bag, inner bag label and master carton label. For a multi-item kit, show the exact item order inside the pouch or box, the sealing method, barcode scan result and the weight of one finished kit. Once approved, use the same matrix for final inspection so the QC team checks against the same rules the receiving warehouse expects.

• Send one SKU row per physical version, not one row per artwork family.
• Freeze destination quantities before mass-production packing starts.
• Request carton label artwork with SKU, PO number, destination code, quantity, gross weight, carton size and carton sequence.
• Approve one packed carton photo per SKU or destination before final sealing.
• Keep 1% to 2% spare units in a clearly marked overrun carton if the event team or warehouse can accept extras.
