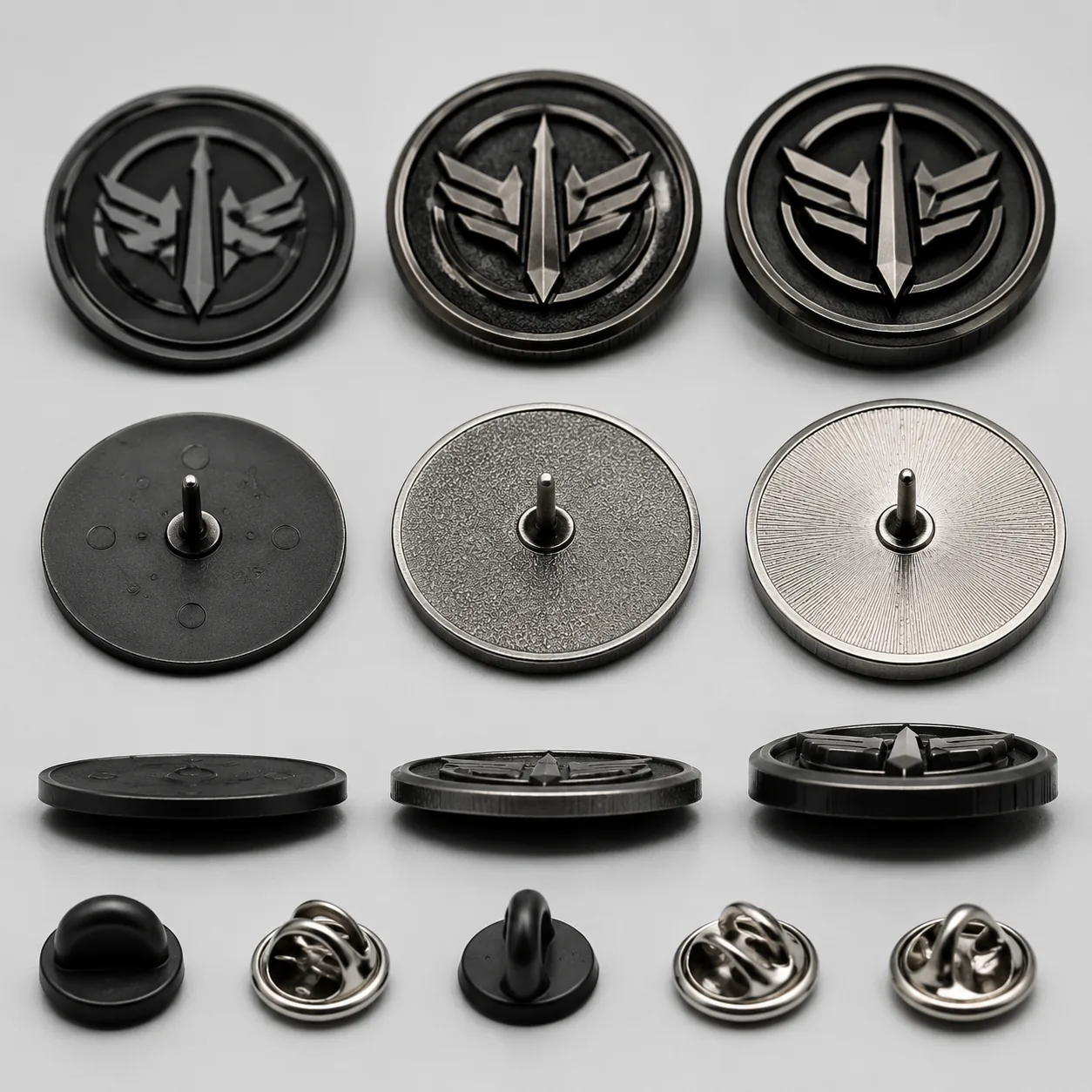

PVC Patch Spec Sheet: Relief, Backing and Edge Specs

1. Start with the end use, not the artwork

Most PVC patch problems come from specifying the logo before specifying the job. A patch for a structured cap, a soft-shell jacket, a tactical vest, and a zipper pull may share the same artwork, but they need different thickness, hardness, border geometry, and backing. If those choices are not set early, the factory will quote from its default construction and you will discover the mismatch only at sewing or field trial.

Put the application in the first line of the RFQ. A practical example is: “Custom soft PVC patch, 75 mm wide, hook backing, matte finish, outdoor bag use, Shore A 65-70, total thickness 3.0 mm, 5 colors, 2D stepped relief, sew-safe border not required.” That one sentence tells the supplier how to choose the compound, mould depth, edge profile, and QC target before pricing.

Use the right construction for the use case. Sew-on garment patches usually work best at 2.0-2.8 mm total thickness and Shore A 50-65. Removable hook-backed patches for uniforms, bags, and staff vests are more stable at 2.5-4.0 mm and Shore A 60-75. PVC keychains, zipper pulls, and luggage tags can run harder, around Shore A 70-85, because they do not need to conform to fabric.

Use case	Recommended total thickness	Recommended hardness	Typical design risk
Sew-on garment patch	2.0-2.8 mm	Shore A 50-65	Too stiff or thick for light fabric; skipped stitches and puckering
Cap or curved sleeve patch	2.0-2.5 mm	Shore A 50-60	Bridges over curve instead of sitting flat
Hook-backed morale patch	2.5-4.0 mm	Shore A 60-75	Backing adds stiffness; edge peel must be controlled
PVC keychain or zipper pull	3.0-5.0 mm	Shore A 70-85	Detail holds well, but too rigid for apparel
Luggage tag or bag label	3.0-4.5 mm	Shore A 65-80	Fine text distorts if the badge is too small or too soft

2. Specify the compound, hardness, size, and tolerances

Most custom patches are made from phthalate-compliant soft PVC, but “soft PVC” is not a complete specification. Ask the supplier to confirm compliance needs such as RoHS, REACH SVHC, CPSIA, EN71-3, or California Proposition 65 if the product will enter retail, children’s, or regulated channels. Even for tactical or promotional use, state phthalate-compliant PVC so the factory does not substitute an unverified plasticizer package.

Hardness should be written in Shore A. Softer compounds bend better on apparel and feel less plastic, but they can round off small raised letters below about 1.5-1.8 mm high. Harder compounds hold crisp edges and deeper relief better, but they can pull on lightweight fabric and feel rigid on curved surfaces. A common production compromise is Shore A 60-65 for patches and Shore A 75-80 for matching accessories such as keychains or bag tags.

Thickness must be defined at the highest raised point, not at the recessed background. If a patch has a 2.0 mm base and the logo rises another 1.0 mm, the finished thickness is 3.0 mm. A realistic tolerance is ±0.3 mm for most 2.5-4.0 mm patches, and ±0.2 mm for simpler 2.0 mm sew-on parts when the mould design is stable. On large patches above 100 mm, ±0.4 mm is often more realistic because shrinkage and cooling are less uniform.

Dimensional tolerance should also be written into the PO. Good baseline numbers are length and width ±1.0 mm for patches under 100 mm, ±1.5 mm for larger patches, and backing alignment within ±1.5 mm of the approved position. Without those numbers, a factory may treat visible drift as acceptable even when it affects sewing channels, Velcro fit, or retail presentation.

Spec item	Baseline tolerance	Tighter option	Notes
Total thickness	±0.3 mm	±0.2 mm	Measure at the highest raised point
Length / width under 100 mm	±1.0 mm	±0.8 mm	Use tighter control for boxed retail cards
Length / width over 100 mm	±1.5 mm	±1.0 mm	Large parts move more during curing
Backing position	±1.5 mm	±1.0 mm	Critical for hook-and-loop fit
Edge flash	No visible flash at 30 cm	Trim to 0.2 mm max	Define visible distance in the PO

3. Control relief levels, line width, and fine details

PVC patches are built from moulded levels and color-filled zones. A flat 2D patch usually has one recessed background and one raised foreground. A stepped 2D patch may use two or three heights for borders, icons, and letters. A rounded 3D patch uses softer transitions, but it should not be treated like a metal badge. PVC flexes during curing and demoulding, so very fine peaks can flatten or blur.

For reliable mass production, raised lines should be at least 0.8 mm wide, with 1.0 mm preferred for dark-on-dark artwork or matte finishes. Recessed grooves should be at least 0.6 mm wide and about 0.3 mm deep to remain readable after filling. Raised sans-serif text should be at least 1.8 mm high on patches above 70 mm, and 2.5 mm is safer for retail-grade readability. Serif fonts, condensed fonts, and curved microtext need more space than artwork proofs suggest.

Avoid isolated dots below 0.8 mm diameter, thin strokes below 0.6 mm, and long text lines below 2.0 mm high on patches under 60 mm wide. Trademark symbols, founding years, coordinates, and QR-like details often look fine in the digital proof but fill in during moulding or color placement. If a QR code, gradient, camouflage pattern, or photo must be accurate, switch to printed PVC, woven, or sublimated construction instead of a fully moulded patch.

• State the relief style: flat 2D, stepped 2D, or rounded 3D.
• Limit standard designs to 2-4 height levels; use 5 only on larger patches.
• Set minimum raised line width at 0.8 mm; use 1.0 mm for high-contrast or dark colors.
• Set minimum recessed groove width at 0.6 mm and depth at 0.3 mm where possible.
• Keep raised text at 1.8 mm high minimum; use 2.5 mm for retail or inspection-critical text.
• Convert gradients and photographs into solid Pantone-style color zones.
• Ask for a 1:1 mould proof with actual relief heights before tooling.

4. Lock the color system, dividers, and finish

Color count affects cost, lead time, and defect rate because every PVC color must be placed and cured cleanly. Two to four colors are efficient. Five to eight colors are common for brand patches, but they require better separation and more careful inspection. Above eight colors, the factory should review whether the artwork should be simplified or moved to woven, printed fabric, or printed PVC.

Use Pantone references as targets, but approve color against a physical sample. PVC can shift slightly after heating, and matte surfaces look darker than glossy surfaces under the same light. For standard commercial work, visual match to the approved sample under D65 daylight is more practical than demanding a lab-only target. If your brand team requires measurable control, specify ΔE 2.0-3.0 for critical colors and confirm the supplier can actually measure it. Fluorescent, metallic, and transparent PVC are harder to hold tightly.

Color dividers are functional, not just decorative. They keep colors from bleeding together and help the mould contain each zone. A raised divider of 0.6-1.0 mm is recommended between contrasting colors, especially white next to black, red next to white, yellow next to dark blue, or fluorescent colors next to black. If adjacent colors meet with no divider, expect more fuzzy edges and more inspection rejects.

Finish should be specified as matte, semi-matte, or glossy. Matte is preferred for tactical, workwear, outdoor, and apparel patches because it hides scuffs. Glossy looks brighter for youth merchandise, novelty items, and keychains, but it shows fingerprints and scratches faster. Semi-matte is the safest default for products that will be handled frequently but still need strong color.

Color and finish item	Practical factory specification	Buyer note
Color count	2-8 colors typical	Above 8 colors increases labor, rejects, and lead time
Color tolerance	Pantone reference plus approved physical sample	PVC color varies with curing, finish, and lighting
Critical color control	Target ΔE 2.0-3.0 if measured	Confirm the supplier can measure before writing it into the PO
Raised divider width	0.6-1.0 mm	Use wider dividers for white/dark or fluorescent/dark combinations
Surface finish	Matte, semi-matte, glossy	Matte hides wear; glossy gives brighter retail appearance
Transparent PVC	Possible in simple large zones	Not suitable for exact opacity or tiny detailed areas

5. Engineer the edge, sewing channel, and border width

Edge design determines whether the patch can actually be attached. For sew-on patches, do not let raised artwork run to the outside edge unless the patch is purely decorative. Specify a flat sewing border or sewing channel 2.0-3.0 mm wide, clear of raised text, rope borders, and thick corners. The stitch path should be even around the shape, not forced through alternating thin and thick areas.

For industrial sewing, the needle should pass through a flat edge area no thicker than about 2.2-2.8 mm. If the total patch is 4.0 mm thick and the border is also 4.0 mm, many garment factories will reject it or produce crooked stitches, skipped stitches, or visible thread strain. For caps, curved sleeves, polos, and light jackets, use a thinner edge, softer PVC, and a smaller patch footprint. A 90 mm hard morale patch that works on a backpack will not sit naturally on a structured cap.

Decorative merrow-look borders are common on tactical patches. Specify whether the raised rope border is cosmetic only or whether a separate flat stitch channel must sit inside or outside it. For hook-backed patches, the edge should protect the hook tape and reduce peel. A 2.5-3.5 mm outer PVC border is usually safer than a narrow 1.0 mm edge, especially for patches removed frequently from bags, plate carriers, and uniforms.

For irregular shapes, check the narrowest point. A sharp tail, star point, or shield corner can tear if the PVC web is too thin. Keep narrow projections at least 2.0 mm wide in soft PVC and avoid unsupported points longer than 5-6 mm unless the hardness is increased. If the outline is decorative but not functional, simplify it before tooling rather than asking the factory to rescue fragile geometry later.

6. Choose backing by attachment method

Backing is often underspecified on purchase orders. A PVC patch can be plain back for sewing, hook backing for removable use, loop backing to mate with a hook surface, hook plus a separate loop piece for retail kits, heat-seal film, pressure-sensitive adhesive, or split backing for special assembly. Each option changes cost, lead time, packing thickness, and failure mode.

For hook-and-loop patches, specify hook only, loop only, or a hook patch plus a loose loop mate. Standard hook tape adds about 1.0-1.5 mm thickness; a hook plus loop packed set can add 2.0-3.0 mm to the package stack. For field-use patches, ask for edge bonding, stitching, or a combined bond method appropriate to the design. A visual check is not enough. Request a peel check on pre-production and production samples: the backing should resist firm hand peeling at the edge and should not separate during repeated attach-remove cycles.

Heat-seal backing is useful for controlled apparel programs, but it is not universal. Typical press settings are 150-170°C for 10-20 seconds with medium pressure, followed by cooling before handling. Final parameters depend on the adhesive film and fabric. It is not recommended for heat-sensitive fabrics, waterproof coatings, heavily textured fabric, silicone finishes, or buyers who cannot control press temperature and dwell time.

Backing type	Typical added FOB cost	Best use	Risk to manage
Plain back	$0.00-$0.03	Sew-on garment or bag patches	Buyer must arrange sewing and test stitchability
Hook backing	$0.08-$0.25	Uniforms, tactical bags, staff vests	Adds stiffness; edge peel must be controlled
Hook plus loop piece	$0.15-$0.45	Retail packs, event kits, removable badges	Higher packing volume and unit cost
Heat-seal film	$0.05-$0.18	Controlled garment application	Poor bonding on coated or heat-sensitive fabrics
Pressure-sensitive adhesive	$0.04-$0.12	Temporary placement, packaging, display samples	Not a permanent apparel attachment
Magnet or pin hybrid	$0.15-$0.60	Badges, souvenirs, display pieces	Requires safety review and stronger QC for detached parts

7. Set MOQ, tooling, price, and lead time realistically

PVC patch tooling cost depends on size, relief count, edge complexity, and whether the mould must support fine multi-color zones. For a simple 60-75 mm patch, tooling commonly falls around $60-$150. Larger or multi-level moulds are often $180-$350. Very large 120 mm patches, deep 3D relief, or multi-cavity tooling can exceed $400. Ask whether tooling is stored for reorders, whether storage lasts 12, 24, or 36 months, and whether a reactivation fee applies.

A practical MOQ is often 100 pieces for a simple patch, but the efficient price point usually starts at 300-500 pieces because setup, color mixing, and mould preparation are spread over more units. For 6+ color hook-backed patches, 300 pieces is a more realistic minimum. For retail packed sets or complex 3D designs, expect factories to push toward 500 pieces.

Normal sample lead time is 7-10 days after artwork and mould proof approval. Complex 3D relief, many colors, or nonstandard backing can move sampling to 10-14 days. Mass production is typically 12-20 days after sample approval for standard patches, and 18-25 days for hook plus loop, retail packing, large patches, or combined promo sets. Add shipping time separately: air courier is commonly 3-7 days, while ocean freight depends on route and consolidation.

Spec scenario	MOQ to quote seriously	Tooling range	Sample lead time	Mass lead time	FOB unit range at 500 pcs
60 mm, 3 colors, plain back	100-300 pcs	$60-$120	7-10 days	12-16 days	$0.45-$0.90
75 mm, 5 colors, sew-on flat border	300 pcs	$90-$180	7-10 days	14-18 days	$0.70-$1.30
80 mm, 6 colors, hook backing	300-500 pcs	$120-$220	8-12 days	15-22 days	$0.95-$1.80
100 mm, 8 colors, hook plus loop	500 pcs	$180-$350	10-14 days	18-25 days	$1.80-$3.50
120 mm, 3D relief, retail packed	500 pcs	$250-$450+	12-16 days	22-30 days	$2.50-$4.80

8. Define QC, AQL, and approval before release

PVC patches should be inspected for size, total thickness, relief definition, color placement, surface contamination, edge quality, backing alignment, and attachment strength. For general promotional orders, AQL 2.5 for major defects and AQL 4.0 for minor defects is a practical baseline. Critical defects should be zero acceptance: sharp foreign material, broken metal attachments on hybrid keychains, mould oil that transfers to fabric, unsafe detached magnets or pins, or backing that separates with light hand force.

Define major defects clearly. Examples include wrong backing, wrong size beyond tolerance, missing color, severe color bleed, backing misalignment over ±1.5 mm, exposed adhesive, warped patches that will not sit flat, or stitch channels blocked by raised PVC. Minor defects include small surface specks, slight flash at the edge, small matte/gloss variation, or tiny color overflow that is not visible at normal viewing distance.

Approve a physical pre-production sample made with final PVC, final hardness, final backing, and final packing. Check the sample on the real garment, cap, bag, vest, or display card. For sew-on patches, run an actual sewing trial through the edge channel. For hook-backed patches, attach and remove the sample at least 20 cycles and inspect the edge. For heat-seal backing, press onto the real fabric and perform a wash or peel test if the program requires durability.

Your final approval pack should include finished size, thickness, Shore A hardness, relief levels, Pantone references, approved physical sample, border width, backing type, packing method, MOQ, delivery date, AQL level, and defect definitions. Release mass production only after the supplier confirms these points in writing; most PVC patch problems become expensive only after the patch reaches the sewing line, field kit, or retail shelf.
