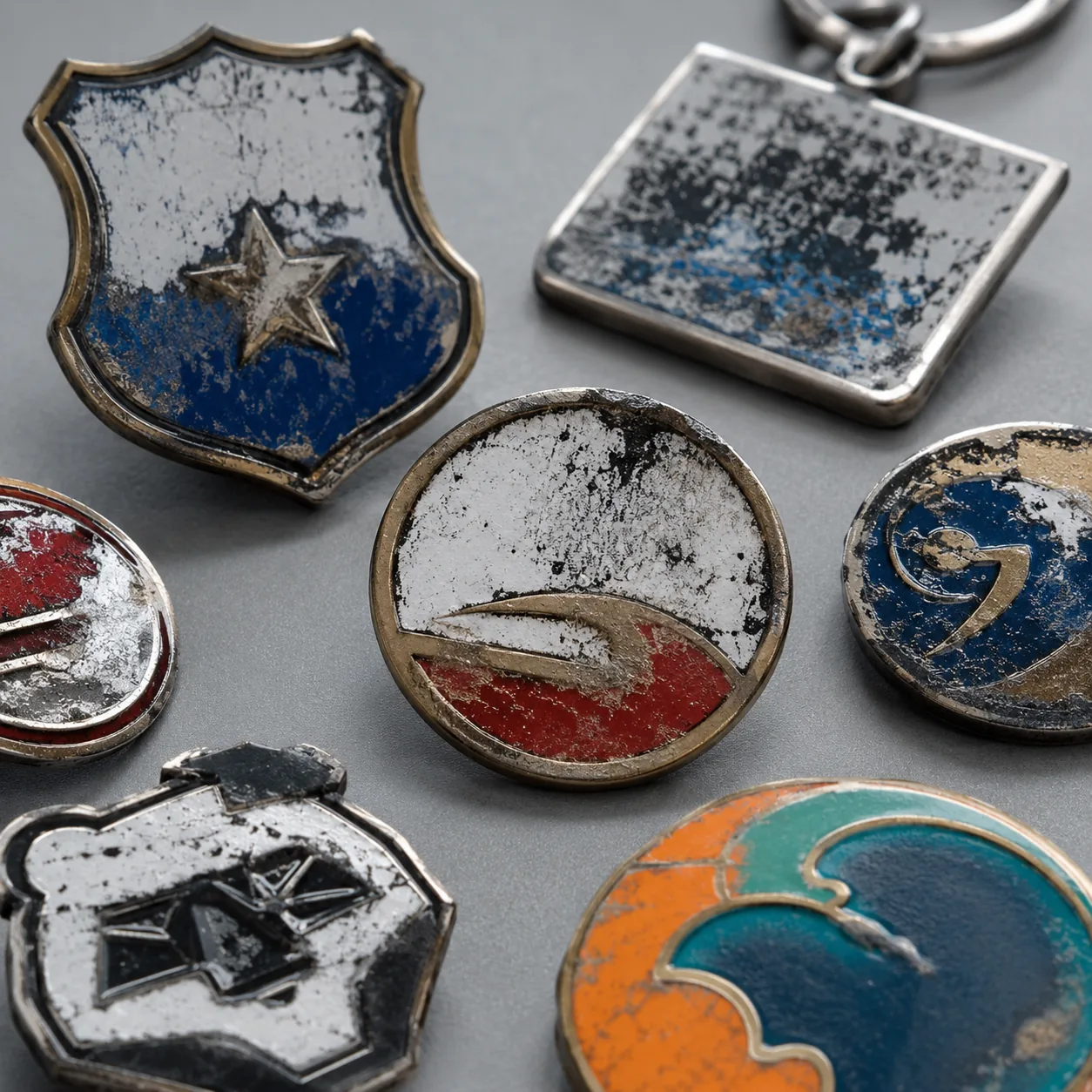

Pad Printing Failures on Custom Metal Giveaways

1. Set Artwork Limits Before Making the Cliché

Most pad-printing failures start before ink reaches the part. A vector logo may be clean on screen, but a silicone pad stretches and compresses the ink film as it lifts from the etched cliché and releases onto plated metal, enamel, epoxy or a curved casting. Fine strokes, reversed gaps and small text lose definition faster than buyers expect, especially on domed or uneven surfaces.

For flat nickel, brass or stainless steel, use 0.12 mm as the minimum positive printed line and 0.18 mm for reversed gaps. On hard enamel, raise the line minimum to 0.15 mm. Under epoxy or on a curved coin face, use 0.20 mm lines and 0.25 mm reversed gaps. Text below 1.5 mm high on flat metal, or below 1.8–2.0 mm on epoxy, should be treated as a readability risk rather than a guaranteed print.

QR codes and certification marks need stricter rules. A QR code below 8 mm square on flat metal, or below 10 mm under epoxy, often scans inconsistently after ink spread, glare and doming. If the final mark must be smaller, move it to a laser-etched backstamp, printed backing card or recessed flat panel.

Artwork Feature	Flat Plated Metal	Enamel or Epoxy	Better Option When Smaller
Positive printed line	0.12 mm minimum	0.15–0.20 mm minimum	Raised metal, engraving or enamel fill
Reversed gap	0.18 mm minimum	0.25 mm minimum	Open the artwork or add a print window
Text height	1.5 mm minimum	1.8–2.0 mm minimum	Backstamp, card print or larger badge
QR code	8 mm square minimum	10 mm square minimum	Laser code or printed insert
Edge clearance	0.30 mm preferred	0.40 mm preferred	Recessed print pocket or larger border

2. Specify Adhesion by Substrate, Not by Ink Color

Ink adhesion failures usually come from surface mismatch, contamination or incomplete cure. Polished nickel, black nickel, epoxy, acrylic, PVC and lacquered plating do not share the same surface energy or solvent resistance. An ink that passes on bright nickel may lift from epoxy because the cured film is sitting on a slick coating rather than biting into metal.

The purchase order should name the surface and the ink system. For plated metal, require solvent degreasing or alcohol wiping before printing, clean nitrile-glove handling and complete drying before parts enter the fixture. For epoxy, acrylic and coated surfaces, ask whether corona treatment, flame treatment or a compatible primer is needed. Silicone-release residue from trays, oily plating compounds and fingerprints are common causes of random missing strokes.

A practical acceptance target is 2H–3H pencil hardness after cure, no visible lift after a 3M 600 or equivalent tape test, and no missing logo elements when viewed at 30 cm under 600–1,000 lux daylight-equivalent light. Many pad-print inks reach handling strength in 30–60 minutes but need 24 hours at 20–25°C before adhesion is judged. For high-handling items such as keychains, zipper pulls and bottle openers, require 48 hours before bulk packing or redesign the mark as engraved, recessed or enamel-filled.

• Confirm the exact substrate: bright nickel, black nickel, gold plating, epoxy dome, acrylic, PVC or painted coating.
• Match the ink system to that substrate; do not assume one metal ink works on epoxy or lacquer.
• Define the adhesion test: 3M 600 tape, firm pressure, 180-degree pull, tested after 24 hours at 20–25°C.
• Set acceptance in writing: no flaking, edge lift, missing letters or visible ink transfer on the tape.
• Hold rush orders until the cure window is complete; factory photos taken wet are not adhesion evidence.

3. Control Color With Samples, Underbase and ΔE Limits

Pantone numbers are useful, but they do not fully define pad-printed color on metal. Thin ink films allow background reflectivity to influence the final appearance. White over black nickel can look gray, yellow over gold plating becomes warmer, and red under clear epoxy often looks softer than the same ink on a white drawdown card.

For color-critical orders, approve a physical pre-production sample on the final substrate, not a monitor image. Use opaque ink for light colors on dark plating. If opacity is still weak, specify a white underbase or two-pass print. This improves coverage but adds one print pass, one cure step and one registration risk. A realistic production tolerance for spot pad printing on small metal gifts is ΔE 3–5 against the approved sample. Tighter than ΔE 3 normally requires a stable flat substrate, controlled lighting and extra sampling.

Fluorescent and metallic inks need caution. Fluorescents often dull after curing and show batch variation. Metallic pad-print inks can look grainy on small logos because the flakes do not align evenly in a thin film. If the design needs a metallic effect, use plating, stamped metal relief or glitter enamel instead of metallic ink.

Color Situation	Common Failure	Specification to Add	Cost or Risk Impact
White on black nickel	Gray or translucent logo	Opaque white plus underbase or double hit	Add USD 0.03–0.08/pc and registration risk
Pantone over gold plating	Color appears warmer	Approve physical sample; allow ΔE 3–5	May need ink adjustment after first sample
Logo under epoxy dome	Soft edges and shifted tone	Print before epoxy; approve domed sample	Add 3–7 days for epoxy cure and inspection
Fluorescent ink	Duller after cure	Physical approval only; no screen-only signoff	Higher batch variation
Metallic ink	Uneven sparkle	Use plating or glitter enamel for metallic effect	Artwork or tooling may change

4. Design for Registration Capability, Not Perfect Alignment

Registration disputes happen when artwork has no tolerance zone. The factory may hold normal pad-print capability while the buyer sees a logo touching a raised border and rejects the lot. This is common when a printed mark sits inside a narrow metal frame, aligns with enamel cells or uses a white underbase plus a second color.

For one-color printing on flat pins, badges and keychains, specify ±0.15 mm registration after fixture setup. For two-color printing, epoxy surfaces, curved challenge coins, cast 3D badges and irregular brooches, use ±0.20–0.30 mm unless the supplier builds and validates a custom fixture. If a logo sits inside a 0.5 mm border, leave at least 0.30 mm visual clearance per side. If that clearance is impossible, change the design to a larger printed panel, recessed pocket or enamel-filled field.

Curved coins and sculpted badges add distortion because the pad contacts one area first, then wraps across the surface. A small fixture angle error can stretch one side of the image and compress the other. For artwork that must align tightly to relief, stamp a flat print panel into the die or move the logo to the reverse side.

• Put registration tolerance on the signed drawing and purchase order, not only in email comments.
• Avoid printed strokes that must exactly touch raised metal, enamel walls or coin rims.
• Use trapping where possible: overlap underbase colors by 0.10–0.20 mm beneath the top color.
• Request a fixture photo for irregular shapes, soft PVC attachments or parts without a flat reference edge.
• Approve a real pre-production sample for every two-pass, underbase or multi-color print.

5. Separate Process Defects From Unrealistic Expectations

Pad printing transfers a controlled but thin ink film. The final print depends on ink viscosity, thinner ratio, cliché depth, pad hardness, pad pressure, pickup delay and drying speed. If ink is too heavy, counters in A, e and o fill in. If the ink dries too quickly before transfer, strokes break. If the surface is dusty or oily, pinholes appear. If the solid area is too large, density becomes patchy because a pad cannot lay ink like a screen-print squeegee.

For metal giveaways, typical cliché depth is 18–25 microns for normal spot logos and 25–30 microns for heavier coverage. Deeper plates can improve density but increase edge spread and filled text. Silicone pad hardness commonly runs 6–12 Shore A for small curved products. Softer pads wrap uneven surfaces better, but they distort fine detail more easily. Solid printed blocks wider than 15 mm should be screened, enamel-filled, printed on an insert or broken into smaller design elements.

Use two inspection standards. During first-article approval, check filled text, broken strokes and density under 5x magnification so the operator can adjust viscosity, pressure or cliché cleaning. For shipment inspection, judge normal cosmetic defects at 30 cm under 600–1,000 lux. Rejecting microscopic pinholes that are invisible in use adds cost without improving customer experience; accepting unreadable sponsor names creates real commercial risk.

Defect	Likely Cause	Prevention Spec	Inspection Method
Filled small text	Ink too heavy, plate too deep or detail too small	Text height 1.5–2.0 mm minimum; cliché 18–25 microns for fine work	5x first-article check
Pinholes	Oil, dust, poor wetting or fast drying	Degrease parts; control thinner and drying time	30 cm visual plus spot magnification
Uneven solid area	Print area too large for pad transfer	Limit solid width to 15 mm or change process	Normal light at 30 cm
Broken strokes	Dry ink, worn cliché or low pickup	Maintain viscosity and clean cliché on schedule	Compare with golden sample
Ink halo	Too much thinner or pad pressure	Lock first-article settings after approval	Side-by-side visual check

6. Price, MOQ and Lead Time Rise With Print Risk

Pad printing is low-cost when the product has one flat print area, one color and no strict opacity requirement. It becomes more expensive when the order adds underbase layers, epoxy doming, tight registration, two-sided printing, abrasion tests or custom fixtures. Buyers should compare quotes by landed risk, not only unit price.

For common custom metal giveaways, a practical MOQ is 300–500 pieces for one-color printing on an existing pin, coin or keychain shape. Custom die-struck or cast metal items usually start at 500 pieces, with better pricing at 1,000 and 3,000 pieces. Typical FOB China pricing ranges are USD 0.45–0.95 for simple printed iron pins, USD 0.80–1.80 for zinc alloy keychains and USD 1.20–3.50 for challenge coins, depending on diameter, thickness, plating, enamel and packaging. Each extra print pass commonly adds USD 0.03–0.12 per piece; a custom fixture may add USD 30–150.

Lead time should include proofing, tooling, curing and inspection. Digital proofing usually takes 1–2 days. Metal tooling and blank samples take 5–8 days. Pad-print sample approval, including cure and tape testing, takes 2–4 days. Mass production after approval typically needs 10–18 days for pins and keychains, or 15–25 days for challenge coins. Epoxy doming, two-side printing, custom fixtures or third-party testing can add 3–7 days. For event orders, keep at least five calendar days of buffer before freight cutoff.

Order Situation	MOQ Planning Range	Typical FOB Range	Lead Time After Artwork Approval
One-color printed iron pin	300–500 pcs	USD 0.45–0.95/pc	12–18 days
Printed zinc alloy keychain	500 pcs	USD 0.80–1.80/pc	15–22 days
Printed challenge coin	500 pcs	USD 1.20–3.50/pc	18–25 days
Two-color or underbase print	1,000 pcs preferred	Add USD 0.06–0.24/pc	Add 2–5 days
Epoxy over print	500–1,000 pcs	Add USD 0.08–0.25/pc	Add 3–7 days

7. Use AQL Plus In-Process Controls

Pad-print defects often cluster because they follow setup drift, ink condition and operator adjustment. The first 500 pieces may be clean, then ink thickens and small text starts to fill. If inspection samples only from sealed cartons, one bad production window can still reach a distributor or event site even when the total lot appears acceptable.

Use process checks as well as final inspection. Require first-article approval at the start of printing, then line checks every 30–60 minutes or every 500–1,000 pieces, whichever comes first. For outgoing inspection, General Inspection Level II with AQL 2.5 for major defects and AQL 4.0 for minor cosmetic defects is common for promotional metal products. Wrong artwork, wrong logo color family, failed adhesion or mixed designs should be treated as critical, often AQL 0 or AQL 0.65 depending on contract risk.

Define severity before production starts. A missing letter in a sponsor name, print shifted beyond tolerance, wrong Pantone family or tape-test failure should be major. A tiny pinhole outside the logo, visible only under magnification and not affecting readability, can be minor. For orders above 3,000 pieces, multi-color logos or event-critical branding, keep one signed pre-production sample as the golden sample for final inspection.

Defect Type	Suggested Severity	Acceptance Logic	Spec Note
Wrong artwork or mixed design	Critical	No mixed shipment accepted	Check against signed proof and golden sample
Wrong color family	Critical or major	Reject affected batch	Use physical sample and ΔE target
Logo shifted beyond tolerance	Major	AQL 2.5 or tighter	Define ±0.15–0.30 mm by product type
Ink lift in tape test	Major	Reject affected batch after confirmed cure	Test after 24 hours minimum
Tiny pinhole outside text	Minor	AQL 4.0	Judge at 30 cm, not microscope-only

Pad printing is a strong process for small logos, serial marks, sponsor names and spot colors on flat or slightly curved metal giveaways. It is a weak choice for large solid panels, tiny legal copy, high-abrasion rims and photographic detail. A print-ready RFQ should state substrate, plating, print size, Pantone target, opacity requirement, minimum text height, registration tolerance, cure time, adhesion test, packaging method and AQL level. Clear specifications will not remove all variation, but they convert subjective disputes into measurable checks before tooling, fixtures and finished cartons make changes expensive.
