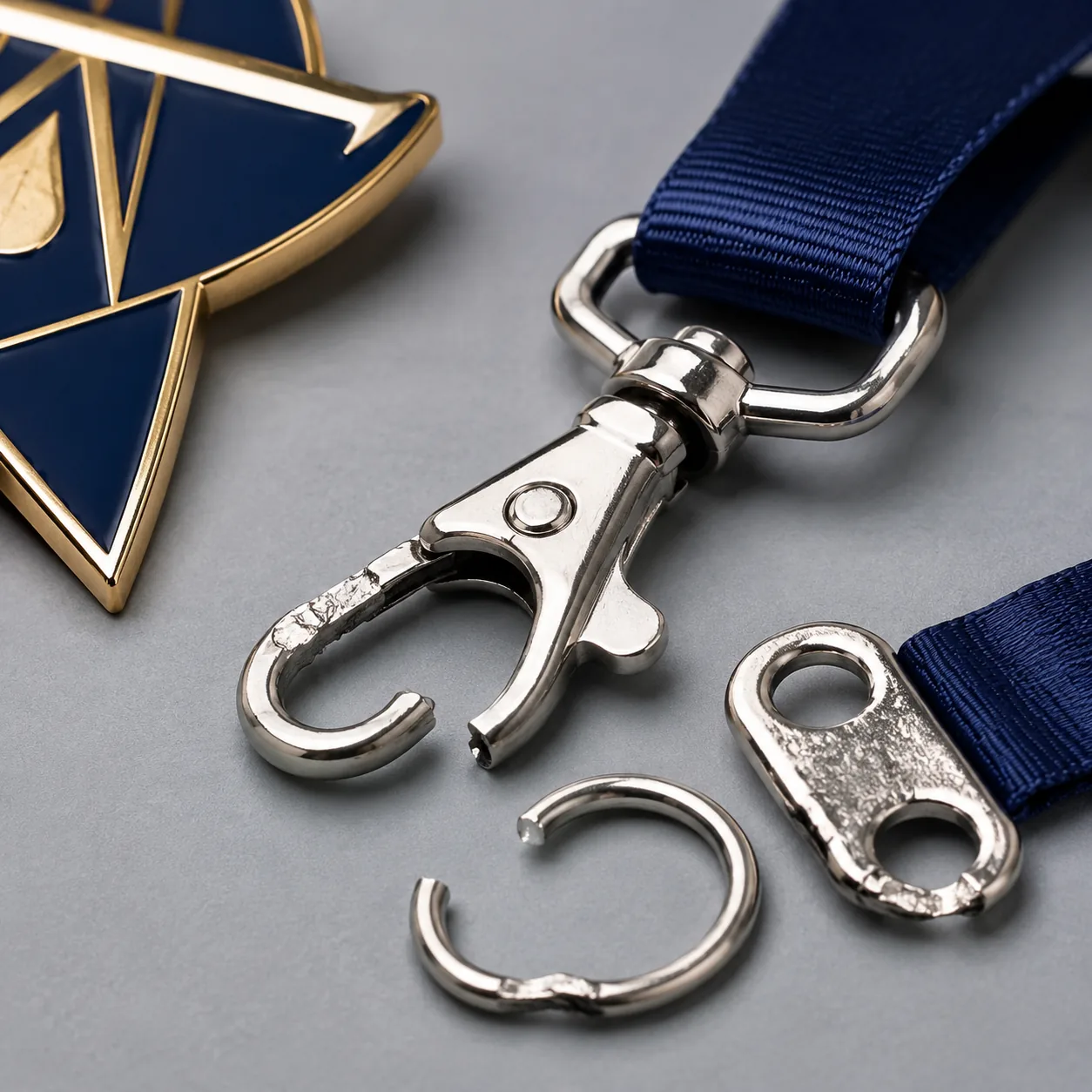

Lanyard Hardware Failures: Specs That Stop Event-Day Returns

Specify the load case before naming the clip

Most lanyard hardware failures start with a vague purchase order line such as “standard metal clip.” That wording does not tell the factory what the lanyard must carry, how long it will be worn, or whether the badge can rotate, tear, rust, or fall off. A one-day paper pass in a thin sleeve is a different product from a staff lanyard carrying keys, an RFID credential, a radio tag, or a retractable reel.

Start with hanging weight. For a single PVC card or light sleeve up to 25 g, a 0.8 mm iron J-hook, 32 mm lobster hook, or small bulldog clip is normally acceptable if the badge slot is clean and reinforced. At 25-50 g, specify a swivel hook or better lobster hook with controlled gate recovery. Above 50-70 g, remove low-cost wire hooks from the default option list and move to zinc alloy swivel hooks, split rings, reinforced reels, or two-point attachment. For keys, radios, access devices, and multi-week staff use, design around a 5 kg pull target rather than the badge weight alone.

Quote by hardware level, not by clip nickname. Economy hardware can still have a material, wire diameter, plating thickness, and pull requirement. Standard hardware should add 360-degree swivel action, better gate recovery, and tighter inspection. Reinforced hardware should be used when the wearer may sit, pull, scan repeatedly, or carry metal parts that create shock loads.

Failure risk	Weak PO wording	Controlled specification	Typical FOB add-on
Wire hook opens	0.6 mm iron wire hook	0.8-1.0 mm iron or 201/304 stainless wire; 3 kg static pull for 10 seconds	$0.010-$0.025/pc
Lobster gate loses spring	Zinc alloy lobster hook	32-38 mm hook; gate returns fully after 500 open-close cycles	$0.030-$0.070/pc
Badge twists backward	Fixed hook sewn to strap	360-degree swivel hook; no binding under 0.5 kg vertical load	$0.040-$0.090/pc
PVC sleeve tears	Hook through thin sleeve	Bulldog clip or reinforced slot; sleeve 0.35-0.45 mm for repeated use	$0.020-$0.060/set
Keys pull loose	Small lobster hook	1.0-1.2 mm split ring plus swivel hook; 5 kg pull target	$0.050-$0.120/pc
Outdoor rust	Unspecified nickel plating	5-8 micron nickel on zinc alloy or 304 stainless wire; moisture-controlled packing	$0.030-$0.100/pc

Control breakaway release force, not just appearance

A neck breakaway is a safety component, not a decorative plastic part. If it opens too easily, badges are lost and the event team blames the lanyard. If it does not release under reasonable force, it can create a snagging hazard around doors, crowd barriers, machinery, escalators, and children. The specification must state release-force range, material, and test method.

For adult conference lanyards, a practical release-force window is 1.5-3.5 kg, measured by pulling both strap ends in line at 20-25°C. For schools, hospitals, visitor programs, or child-facing events, buyers often request 1.0-2.5 kg, but the correct value depends on the destination market and risk assessment. Do not ask a supplier to “certify child safe” unless the standard, lab, sample size, and acceptance criteria are named. For warehouse or industrial staff, avoid novelty magnetic breakaways unless the release force has been validated; molded POM or good-grade PP snap parts are more consistent.

Plastic dimensions matter. Male-female snap ribs and latch depth should normally be held within ±0.10 mm, and the buckle should be checked for brittle whitening after repeated release. Recycled or mixed plastic can pass a photo review but crack after cold storage or container transit. Validate release force twice: on loose components before sewing and on finished lanyards after assembly. Strap thickness, fold stiffness, and sewing angle can shift measured release force by 15-25%.

Separate the neck breakaway from any detachable buckle near the badge. The neck part should release for safety. The lower buckle should stay closed during use and open only by button operation. Two uncontrolled release points on one lanyard are a common cause of event-day losses.

Engineer the sewn joint and lower buckle

When lanyards fail, the webbing is rarely the weakest part. A 15-20 mm polyester strap can carry far more than an event badge requires. Failures usually occur at the folded stitched joint where the hook, buckle, reel, or split ring is attached. Short foldback, dull-needle damage, loose thread tension, skipped stitches, and heat-cut edges that are not fully sealed can reduce joint strength sharply.

For standard 15 mm or 20 mm polyester lanyards, specify a heat-cut edge, 18-22 mm folded end length, and a box stitch of at least 12 x 8 mm. For badge reels, keys, radios, or staff credentials, use a larger box stitch, bar tack, or double-row stitch. Thread should be 210D/3 polyester for light badge use and 420D/3 for heavier assemblies. A badge-only joint should hold 8 kg static load for 10 seconds. Staff, key, or reel assemblies should target 12-15 kg, with destructive testing recorded by lot.

Detachable buckles must match strap width. Do not use a 10 mm buckle on a 15 mm or 20 mm strap and hide the mismatch under loose stitching. A convenience buckle should withstand 5 kg pull for 10 seconds without separating unless it is intentionally designed as a breakaway. Buttons should still operate after 200 open-close cycles, with no cracks at hinge points, latch corners, or button stems.

• State strap width, material, and thickness: common targets are 15 mm or 20 mm polyester, nylon, or recycled PET at 0.8-1.2 mm thickness.
• Define construction: minimum 18 mm foldback, sealed heat-cut edge, and fraying not exceeding 1 mm.
• Require box stitch, bar tack, or approved double-row stitch; avoid single-line sewing except for very low-cost giveaways.
• Set pull targets: 8 kg for badge-only use and 12 kg or higher for keys, reels, radios, or tools.
• Approve thread type and color; contrast thread helps inspectors see skipped stitches in QC photos.
• Confirm which component is a safety breakaway and which is a convenience buckle; never leave both functions ambiguous.

Prevent rust, plating loss, and sharp edges

Metal hardware can look acceptable in pre-production samples and still rust before registration opens. Lanyards are often packed weeks ahead, shipped through humid ports, or stored in air-conditioned venues where condensation forms on cold metal. Rust risk rises when low-carbon iron hooks receive thin nickel plating, when cut edges are exposed, or when cartons absorb moisture during ocean freight.

For indoor promotional orders, iron hooks with nickel, black nickel, or gunmetal plating may be acceptable if the plating is specified. Use at least 3 microns on visible surfaces for short-term indoor use. For better corrosion resistance, specify zinc alloy hooks with 5-8 microns nickel plating or stainless steel 201/304 wire hooks for J-hooks and split rings. Stainless 304 costs more and offers fewer decorative finishes, but it is the safer choice for outdoor events, marine locations, sports venues, and multi-month staff issue.

Do not request 24-hour or 48-hour salt spray testing casually. Formal salt spray adds cost, needs prepared samples, and may require upgraded plating chemistry. If it is required, state the method, sample quantity, exposure hours, and pass/fail criteria before quotation. For many event orders, a practical control plan is more useful: incoming hardware inspection, no red rust visible at 30 cm, no sharp burrs on contact edges, dry cartons, polybag protection, and silica gel for humid-season shipments.

Sharp edges should be treated as safety-critical. Gate tips, split-ring cuts, bulldog clip teeth, stamped clip edges, and reel exit holes can scratch wearers or cut soft badge sleeves. On user-contact areas, allow no burr that can snag a cotton swab or scratch a fingernail. Plastic molding flash should be under 0.3 mm and away from the neck, fingers, and cord path.

Match reels, rings, and clips to the badge system

A badge reel turns a simple lanyard into a small mechanical product. Common failures include weak spring return, cord fraying, cracked housing, and forward sag because the reel is too heavy for the strap. If the PO says only “with retractable badge reel,” the supplier may use a 30 mm plastic reel intended for a light ID card, while the end user attaches an access card, keys, and a token that exceed the spring load.

For standard ID cards, specify a 32-35 mm ABS reel with nylon cord, 600-700 mm extension, and 60-80 g recommended working load. For heavier use, specify a 40 mm ABS or zinc alloy reel, reinforced nylon or steel cord, and 100-150 g working load. The reel should extend and retract smoothly after 500 cycles during sample validation. For long-term staff programs, test 1,000 cycles on a small sample lot and check for cord fray at the exit hole and weak return in the last 100 mm.

Compatibility failures are as common as strength failures. A hook can be strong but wrong for the badge holder, punched card, phone pouch, or RFID case supplied by another vendor. Confirm slot width, slot height, top margin, item weight, and restricted zones such as RFID antennas or embedded chips. A common horizontal card slot is about 13 x 3 mm, but rigid RFID cards, sleeves, and pouches vary widely.

Item carried	Hardware to avoid	Better option	Critical check
Thin paper pass in sleeve	Sharp J-hook through soft film	Bulldog clip or wide metal clip	Sleeve 0.15-0.25 mm; grip depth and tear resistance
Standard PVC ID card	Large split ring forced through slot	J-hook or swivel hook	Slot at least 13 x 3 mm; sufficient top margin
RFID access card	Metal clip pressing chip zone	Plastic clip or top-slot holder	Antenna and chip position from card edge
Keys or USB drive	Light lobster hook	Split ring plus swivel hook	Ring wire 1.0-1.2 mm; hole at least 4 mm
Phone pouch	Small bulldog clip	Two-point attachment or wide hook	Eyelet spacing and pull strength
Badge reel assembly	30 mm reel for heavy load	40 mm reinforced reel	Working load 100-150 g; 500-1,000 pull cycles

Reels also change packing and cost. They create pressure points that can mark sublimated straps when cartons are compressed. At 1,000 pieces, adding a reel commonly increases FOB cost by $0.12-$0.45 per piece, depending on reel diameter, cord material, logo method, and clip type. Lead time usually increases by 2-4 days because the reel requires separate incoming inspection.

Use AQL plus functional and destructive tests

Visual inspection is not enough for lanyard hardware. A shiny hook can have weak gate recovery, and a neat stitch can fail under load. The inspection plan should combine appearance checks, dimensional checks, functional cycling, and destructive pull tests on a defined sample size.

A practical export plan is AQL 2.5 for major defects and AQL 4.0 for minor defects, with zero tolerance for safety-critical defects such as sharp burrs, broken needles, severe rust, wrong safety construction, or breakaways that cannot release. For orders under 500 pieces, inspect at least 20 pieces for function and destructively pull-test 3-5 pieces. For 5,000 pieces and above, use ANSI/ASQ Z1.4 general inspection level II for appearance, then add special-level samples for pull tests, breakaway release, buckle cycling, and reel cycling.

Set tolerances before production. Typical lanyard tolerances are strap width ±1 mm, finished hanging length ±10 mm, logo repeat position ±3 mm, and correct hardware orientation on 100% of single-sided printed straps. Pad-printed reel logos can usually be held within ±1.5 mm; domed labels and epoxy stickers may need ±2 mm. If the logo must face outward when worn, approve a fully assembled golden sample, not separate strap and hook photos.

• Major defects: hook does not close, breakaway outside force range, stitch joint below target, wrong hardware, sharp burrs, red rust, cracked reel housing, or wrong buckle function.
• Minor defects: slight plating shade variation, molding flash under 0.3 mm away from contact areas, thread tail under 5 mm, or logo shift within approved tolerance.
• Functional checks: gate cycling, breakaway release force, buckle operation, reel extension and return, swivel rotation, and stitched-joint pull tests.
• Dimensional checks: strap width, finished length, foldback length, badge slot fit, ring wire diameter, reel cord extension, and buckle rib engagement.
• Records: keep the signed golden sample, component spec sheet, inspection photos, destructive-test results, lot number, and inspection date.

Put MOQ, lead time, and cost controls into the PO

Before issuing the PO, send the actual badge, holder, or device to the factory. If samples are not available, send a drawing with slot size, total weight, attachment method, and restricted zones such as RFID antennas. Ask for the lowest-risk hardware recommendation, not only the lowest-cost connector. A practical quoting structure is economy for one-day badges, standard for multi-day conferences, and reinforced for staff, keys, outdoor use, or repeated scanning.

MOQ changes when hardware becomes specific. Plain polyester lanyards with stock J-hooks or lobster hooks can often start at 500 pieces. Controlled breakaways, uncommon plating, custom-colored plastic parts, or printed badge reels usually require 1,000-3,000 pieces depending on the component supplier. Fully custom-molded plastic hardware can require 5,000 pieces or more, plus mold cost, color matching, and approval samples.

Typical production lead times are 7-12 days for simple printed lanyards with stock hooks, 10-15 days with controlled breakaway release and upgraded plating, 12-18 days with badge reels or custom retail packaging, and 18-25 days when custom-molded parts, formal lab testing, or special plating validation are required. Freight time, holiday shutdowns, customs clearance, and pre-event consolidation should be planned separately.

As planning ranges at 1,000 pieces, economy event lanyards with stock metal hooks often quote around $0.18-$0.45 FOB per piece, depending on strap width and print method. Standard lanyards with breakaway plus swivel hook commonly fall around $0.35-$0.75 FOB. Reinforced versions with badge reels, split rings, thicker stitching, upgraded plating, or extra QC can range from $0.70-$1.60 FOB or more.

The PO should list strap width and material, hardware material and size, plating thickness, breakaway release-force range, stitched-joint pull target, badge compatibility dimensions, reel load if used, AQL levels, tolerances, and golden sample reference. That turns “standard lanyard” into a controlled product specification and gives QC a clear reason to reject weak hardware before the shipment reaches the registration desk.
