Quality Control

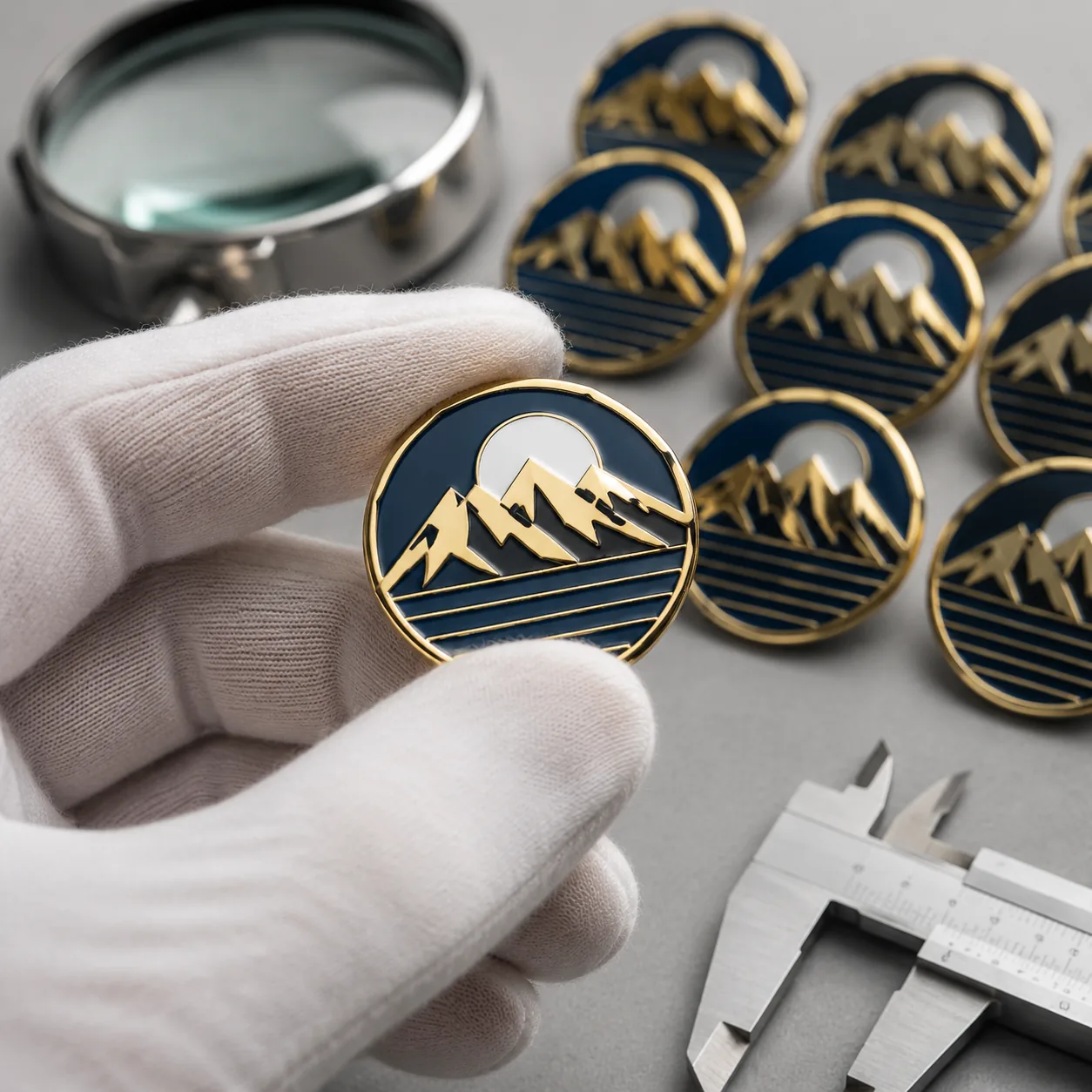

How to Set AQL Inspection Specs for Custom Promo Products

Start With the Shipment Risk, Not a Generic AQL Number

AQL is useful only when it is tied to the failure that would cost the buyer money. The real risk is not “bad quality.” It is receiving 20,000 event pins 48 hours before launch and finding that 8% have loose posts, wrong enamel color, scratched plating, unreadable QR codes or incorrect backing cards. At that point, even a responsive factory may not be able to remake, replate, repack and air-ship replacements without missed dates or extra cost.

Separate the risk into four groups before tooling starts: safety, function, brand appearance and packaging. A 0.5 mm print shift on a low-cost fridge magnet may be acceptable. The same 0.5 mm shift on a QR-code badge can make the code fail. A detached magnet, exposed burr or loose brooch pin is not a cosmetic issue; it is a functional or safety failure and should be treated more strictly than a small back-side scratch.

For custom metal and textile promotional products, ZheCraft recommends locking inspection standards at RFQ and purchase order stage. That gives the factory enough information to price process controls, sorting labor, rework buffer, line checks and final inspection. If AQL limits are introduced only after cartons are sealed, the discussion usually becomes a commercial dispute rather than a quality-control process.

Choose the Sampling Level by Order Complexity

Under ANSI/ASQ Z1.4-style sampling, General Inspection Level II is the normal default for finished promotional products. It balances sample size and cost for standard custom enamel pins, challenge coins, keychains, fridge magnets, patches and lanyards. Level I reduces the sample size and is better for stable reorders where artwork, tooling, plating, hardware, packaging and subcontractors have not changed. Level III increases the sample size and is better for first orders, mixed SKUs, retail packs or products with several process steps.

For example, a repeat 10,000-piece soft enamel pin with unchanged tooling may use Level II. A first-time 2,000-set retail gift box containing a pin, challenge coin, lanyard and insert card should normally use Level III because one wrong component can make the set unsellable. For child-use items, sharp hardware, strong magnets or compliance-sensitive products, do not rely on visual AQL alone; add special tests and critical-defect rules.

Schedule also matters. A third-party final random inspection normally requires goods to be 100% finished and at least 80% packed. Booking usually needs 1 to 2 working days. Inspection normally takes 1 day for a single-product order, and reports are often issued the same day or next morning. Build in 2 to 4 days for sorting or repacking, and 5 to 7 days if replating, reprinting, component replacement or carton relabeling may be required.

Order situation	Recommended level	Example sample size	Use with caution
Stable reorder, unchanged factory and artwork	General Level I	10,000 pcs: about 80 pcs sampled	Too light if plating, attachment, packaging or subcontractor changed
Normal custom order with standard assembly	General Level II	10,000 pcs: about 200 pcs sampled	Too light for complex kits or high-visibility retail launches
New design with multiple processes	General Level III	10,000 pcs: about 315 pcs sampled	May be excessive for very low-value internal giveaways
Safety, legal or child-use concern	Tightened plan plus special tests	Sample size set by risk item	Visual AQL cannot replace pull, magnet, chemical or sharp-edge checks

Set Critical, Major and Minor Defect Limits

A purchase order that says only “AQL 2.5” is incomplete. Buyers should define at least three defect classes. Critical defects are unsafe, illegal or likely to cause injury and should normally use AQL 0. Major defects affect function, branding, scanning, retail presentation or customer acceptance and commonly use AQL 1.0 or 1.5. Minor defects are small workmanship issues that do not affect normal use and are often set at AQL 2.5 or 4.0 depending on value and exposure.

For pins, coins and keychains, a critical defect could be an exposed sharp burr over 0.2 mm, loose pin post, clasp edge that cuts skin, detachable small magnet, mold, oily contamination or mixed prohibited material. A major defect could be wrong Pantone color outside the approved tolerance, missing enamel, plating blister, unreadable QR code, bent split ring, wrong backing card, incorrect SKU label or carton short count. A minor defect could be a back-side scratch under the agreed size, a tiny plating dot outside the logo area, glue residue on the back or a wrinkled polybag.

Do not set every defect to AQL 0 unless the product truly requires zero tolerance. AQL 0 for tiny reverse-side cosmetic marks on a 25 mm giveaway pin can increase sorting cost, extend lead time and inflate quotes without improving end-user experience. Be strict where safety, function, brand appearance and retail presentation are affected; be realistic where small process variation is unavoidable.

Defect class	Typical AQL	Concrete examples	Buyer impact
Critical	0	Sharp exposed edge, loose pin post, detachable magnet, mold on fabric, prohibited material	Shipment fails until sorted, reworked or remade
Major	1.0 to 1.5	Wrong plating color, missing enamel, broken clasp, off-center logo, unreadable code, wrong carton mark	Customer complaints, unusable stock or brand damage
Minor	2.5 to 4.0	Back-side scratch within limit, thread tail under 3 mm, slight bag wrinkle	Accepted only if within limit
Reference condition	Agreed sample	30 cm viewing distance, 5 to 10 seconds per face, D65 or neutral daylight, no magnification	Reduces disputes over subjective appearance

Translate Appearance Expectations Into Measurable Specs

Many inspection disputes start because the PO says “good quality” instead of measurable limits. For metal items, specify size, thickness, plating finish, enamel color, logo position, epoxy condition, attachment strength and packaging. For textile items, specify width, finished length, print registration, stitching, edge finish, backing adhesion, hardware and color tolerance. The inspector should be able to measure or test the requirement, not guess the buyer’s intent.

Tolerances should match the process. For die-struck pins under 40 mm, an overall size tolerance of ±0.3 mm is practical; larger coins or medals may need ±0.5 mm. Coin or badge thickness is often controlled to ±0.2 mm. Lanyard width is commonly ±1 mm, finished length ±10 mm, patch outline ±1 mm and backing card insertion position ±2 mm. Print registration on tight borders, small text or QR-code areas should be controlled to ±0.5 mm.

Decorative plating should be specified instead of assumed. Standard nickel, gold-tone, antique brass or black nickel decorative plating is often specified at 3 to 5 microns. Higher-wear items such as keychains, bottle openers and frequently handled coins may justify 5 to 8 microns, subject to base metal and finish. Epoxy doming should be clear, smooth and free of bubbles in the logo area. Front-visible epoxy overflow, yellowing or contamination should normally be treated as a major defect.

Color should be checked against approved Pantone references or signed golden samples under D65 light or neutral daylight. For controlled corporate enamel colors, Delta E 2 to 3 is a practical target if the factory has color-matching equipment. Sublimated lanyards, woven patches and printed fabric may need wider tolerance because base yarn, heat transfer, ink absorption and dye lots affect the result. If color is mission-critical, approve a pre-production sample and keep one signed sample with the buyer and one with the factory.

• State viewing conditions: 30 cm distance, 5 to 10 seconds per face, D65 light box or neutral daylight.
• List inspection tools: digital caliper, coating thickness gauge, pull tester, barcode or QR scanner and steel plate for magnet checks.
• Define tolerances for size, thickness, print registration, epoxy overflow, hardware gap, carton count and label position.
• Mark no-go zones: logo face, QR code, safety pin point, retail window, customer-facing card area and barcode area.
• Attach artwork version, Pantone list, packing layout, carton marks and golden sample photos to the checklist.

Add Functional Tests for Each Construction

Visual inspection alone is not enough for assembled promotional products. A pin can look acceptable but fail when the post separates after one wear. A keychain can pass artwork review but fail because the split ring has a 0.8 mm open gap. A lanyard can match the approved color but fail because the safety breakaway opens too easily or the print rubs off during handling.

For enamel pins and brooches, specify post pull strength, solder coverage, clutch fit and alignment. A practical rule is no post detachment, no visible solder crack and no rotation on double-post designs during manual pull testing. For higher-risk or retail orders, set a numeric pull target during sample approval, commonly 5 to 8 kgf for standard pin posts where the design and base metal allow it.

For keychains, check split ring springback, jump ring closure, swivel rotation and clasp deformation under normal hand pull. Split ring recovery gap should usually be under 0.3 mm after opening. For fridge magnets and magnetic badges, state whether ferrite, flexible rubber or NdFeB magnets are required. A simple functional rule is that the finished item remains on a vertical painted steel plate for 24 hours without sliding; heavier badges should also have a numeric pull-force target confirmed at sample stage.

Product	Functional test	Typical acceptance rule	Late-stage failure prevented
Enamel pin	Post pull and clutch fit	No detachment, no solder crack, clutch holds firmly	Posts cracking after packing or first wear
Keychain	Ring closure and clasp operation	Split ring recovery gap under 0.3 mm; clasp opens and closes smoothly	Ring spreads, swivel jams or charm detaches
Fridge magnet	Hold and slide test	Item stays on vertical steel plate for 24 hours	Magnet too weak for product weight
Patch	Stitching and backing adhesion	No border thread over 3 mm; heat-seal backing does not peel at corners	Edge fray or backing lift in storage
Lanyard	Length, rub and buckle pull	Length within ±10 mm; no obvious dry-rub transfer; buckle holds normal pull	Print cracks, buckle slips or breakaway fails

Control Packaging Before Cartons Are Sealed

Packaging errors are a common reason shipments are rejected because they are easy to miss during production. A pin may meet all metalwork requirements, but if 30% are inserted upside down on backing cards, the distributor still has to repack before delivery. For retail packs, event kits and mixed-SKU cartons, packaging inspection should be part of the AQL plan, not a casual warehouse check.

Specify unit packaging, inner quantity, master carton quantity, carton size tolerance, gross weight limit and label content. Typical FOB packaging adders are about USD 0.01 to 0.03 per piece for individual OPP bags, USD 0.03 to 0.12 for printed backing cards depending on paper weight and print coverage, and USD 0.20 to 1.20 for kraft boxes, EVA inserts or small rigid boxes. Quote packaging as a separate line so the buyer can see the cost of retail presentation versus bulk packing.

Carton checks should cover count accuracy, barcode scanning, carton marks, moisture protection and transit strength. For small metal items, keep gross carton weight normally under 15 kg to reduce carton rupture and handling damage. Heavy coins and keychains should use 5-ply export cartons, reinforced tape and desiccant when paper cards, textile patches or plated items are packed for sea freight. For mixed SKUs, inspectors should select cartons across production dates and pallet positions, not only the cleanest cartons at the warehouse front.

Balance MOQ, Price and Inspection Cost

Inspection has a cost, but skipped inspection has a different cost. Factory internal final inspection may be included in the unit price, while a third-party inspection in China commonly costs about USD 180 to 350 per man-day depending on city, travel, checklist depth and report requirements. For an USD 800 reorder, third-party inspection may be uneconomical. For a USD 12,000 event order with no remake window, it is often inexpensive insurance.

FOB unit value should influence inspection depth. A simple 25 mm soft enamel pin may run about USD 0.35 to 0.90 FOB at 1,000 to 5,000 pieces, depending on plating, color count, mold charge, backing and packaging. A 50 mm challenge coin often runs about USD 1.20 to 3.50 FOB. A custom polyester lanyard may run about USD 0.25 to 0.95 FOB depending on width, print method, buckle, safety breakaway and MOQ. Higher unit value, tighter launch dates and stronger brand exposure justify tighter AQL, Level III sampling or added functional tests.

MOQ changes the inspection method. At 100 to 300 pieces, buyers often use high-percentage or near-100% visual screening because the batch is small and defects are easy to isolate. At 500 to 5,000 pieces, AQL sampling is usually efficient. Above 10,000 pieces, or whenever production is split across several days, require carton selection across the full batch. If the order includes multiple SKUs, inspect each SKU separately rather than blending all units into one pass/fail result.

MOQ tier	Common inspection approach	Typical lead-time allowance	Buyer note
100 to 300 pcs	High-percentage or 100% visual screening	Add 1 to 2 days	Useful for VIP gifts, samples and small launches
500 to 5,000 pcs	General Level II AQL sampling	Add 2 to 4 days	Best balance for most custom promo orders
5,001 to 20,000 pcs	Level II or III plus carton spread	Add 3 to 5 days	Check production-date variation and packaging consistency
20,000+ pcs or mixed SKUs	SKU-level sampling plus functional tests	Add 5 to 7 days	Plan rework capacity before freight cut-off

Put the Inspection Plan Into the Purchase Order

A strong inspection plan is short enough for the factory, inspector and buyer to use without interpretation. The purchase order should include product specs, approved artwork version, inspection level, AQL limits, defect classification, measurement tolerances, functional tests, packaging standard, carton marks and photo requirements. If an item is not written down, expect it to be judged differently by different people.

ZheCraft can build these checkpoints into production for pins, brooches, keychains, magnets, challenge coins, patches and lanyards because tooling, plating coordination, assembly and packing are managed through one workflow. That does not remove the need for buyer approval; it makes the approval record clearer. The most reliable projects have a signed pre-production sample, a locked inspection checklist and a carton-level packing spec before mass production starts.

Avoid changing AQL rules after goods are finished unless there is a true safety or compliance concern. Tightening cosmetic rules at final inspection usually creates conflict because the factory priced and produced against another standard. If the customer expects retail-grade appearance, specify that before quotation and expect higher sorting, plating control, packaging protection and lead time.

• Use General Level II for normal orders; move to Level III for new, complex, mixed-SKU or high-risk products.
• Set AQL 0 for critical defects, 1.0 to 1.5 for major defects and 2.5 to 4.0 for minor workmanship defects.
• Define measurable limits for size, thickness, color, registration, plating thickness, attachment strength and carton count.
• Keep one signed golden sample at the factory and one with the buyer, distributor or inspection company.
• Add 2 to 7 days for inspection, report review and possible rework depending on MOQ and shipment deadline.
• Require carton selection across the full batch, especially for mixed SKUs or production spread over several days.

Before sending the RFQ, decide which failure would hurt most: unsafe hardware, wrong brand appearance, late event delivery, retail packaging errors or excessive inspection cost. That answer determines the inspection level, defect limits and testing plan. Do not copy a generic AQL clause from another product if the construction, value and end use are different.
