Final Inspection Failures in Custom Metal Promo Orders

Why Approved Samples Still Fail Final Inspection

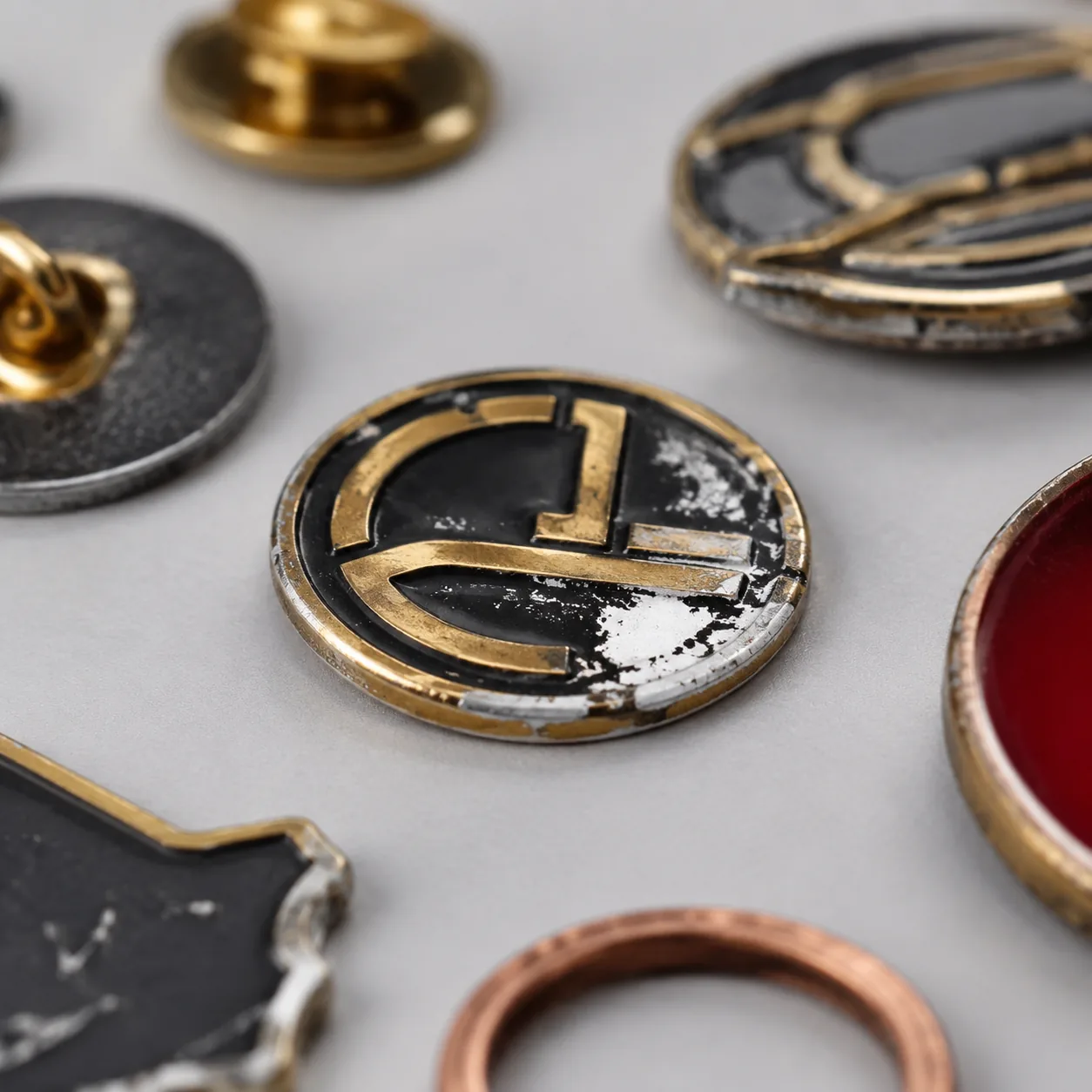

Most custom metal promo orders do not fail final inspection because one pin has a faint scratch. They fail because random sampling finds a repeatable pattern: 7% of a 5,000 piece lot with plating blisters, 4 master cartons with mixed SKUs, weak pin posts from one welding shift, QR codes that scan only at a narrow angle, or backing cards printed from artwork revision V3 instead of V5. By then the die is cut, PMS colors are approved, plating is complete, and packed cartons may already be booked for air freight. Every correction consumes the shipment buffer.

The risk is higher on 2026 programs because many orders are mixed campaigns, not one simple soft enamel pin. A launch kit may include 300 VIP coins, 800 retail brooches, 2,000 lapel pins and 1,500 keychains, each with its own finish, barcode, card, carton label and destination split. Buyers also request nickel-free plating, REACH declarations, recycled paper packaging, child-facing safety checks, serialized QR codes and retailer-specific carton marks. None of these requirements is unusual. They become failure points when they are not converted into measurable acceptance criteria before production.

Final inspection for enamel pins, die-struck badges, challenge coins, keychains, fridge magnets, bottle openers, patches and lanyards should cover five areas: cosmetic appearance, plating durability, hardware function, critical dimensions and packing accuracy. A factory can inspect carefully and still ship goods the customer rejects if the purchase order only says “good quality” or “same as approved sample.” A production-ready order defines critical, major and minor defects before the QC report is written.

Set Cosmetic Limits by Zone, Light and Defect Size

Cosmetic disputes usually start with subjective words: visible, obvious, premium, clean, acceptable. These are not inspection criteria. A workable standard defines viewing distance, lighting level, inspection time, product face, protected artwork zones, defect size and defect density. A 0.20 mm black enamel speck inside a dark fill is not the same commercial risk as a 0.20 mm plating pit on a polished gold logo, character face or sponsor name.

Use 600 to 800 lux neutral white light, D65 light for color comparison where possible, 30 to 40 cm viewing distance, normal corrected vision and 3 to 5 seconds per side for routine bulk inspection. Premium coins, gift-boxed brooches and licensed retail badge sets often need 8 to 10 seconds on the sellable front face. That tighter inspection may add USD 0.01 to 0.03 per piece in labor, but it removes arguments over what the inspector should have seen.

For 20 to 40 mm zinc alloy or iron pins, a front-face scratch longer than 1.0 mm visible at 35 cm should normally be major. Any exposed base metal on the front should be major. One plating pit under 0.30 mm outside a logo zone may be minor if isolated and not clustered. For coins over 45 mm, define zones: portrait, logo, text, QR code and enamel-fill areas are stricter than reverse fields or outer rims. Retail orders should limit front-face major defects per piece, not average defects across the lot.

Defect type	Recommended inspection limit	Typical classification
Front enamel dust spot	Under 0.25 mm, not clustered, maximum 2 per front face outside logo, text or face area	Minor
Polished plating scratch	Over 1.0 mm visible at 35 cm under 600-800 lux	Major
Exposed base metal	Any front-face exposure after plating, polishing, assembly or packing	Major
Backside rub mark	Under 2.0 mm, not through plating, outside backstamp, barcode or QR code	Minor
Pantone mismatch	Visible difference from approved sample under D65 light or Delta E above agreed limit, commonly 2.0-3.0 for retail	Major
Logo or letter distortion	Over +/-0.15 mm on critical logo line, small letter, filled counter or licensed character detail	Major
Epoxy dome bubble	Over 0.50 mm on front, any bubble breaking the surface, or cloudy dome over logo	Major

Specify Plating Build, Adhesion and Tarnish Controls

Bright plating can pass visual inspection and still fail during handling or transit. Poor degreasing, thin copper or nickel underlayers, over-polishing, contaminated black nickel baths and packing parts before they are fully dry can create peeling, black spots or tarnish after carding and bagging. Buyers often approve the shade of shiny gold, antique brass or black nickel without specifying plating build, adhesion checks or tarnish limits.

For short-term giveaway pins, the decorative top flash may be only 0.05 to 0.10 microns over a nickel or copper underlayer. That is a cost decision, not a durability spec. For standard retail pins, specify about 3 microns total plating build including underlayers. For handled keychains, 45 to 55 mm coins and bottle openers, 5 microns total build is a more realistic minimum. The approved sample still controls appearance because micron thickness alone does not define imitation gold tone, black nickel darkness or antique wipe contrast.

Do not over-specify precious top-layer thickness where it adds cost without improving the product. A 25 to 30 mm iron soft enamel pin at 1,000 pieces may be FOB USD 0.38 to 0.85 with standard plating and a paper backing card. Heavier plating, nickel-free processing or anti-tarnish sealing can add USD 0.05 to 0.18 per piece depending on finish, size, base metal and inspection level. Black nickel needs adhesion and color-uniformity controls. Antique finishes need consistent dark fill and wipe. Imitation gold needs tarnish control during humid packing and sea transit.

• Name the plating finish, base metal, underlayer requirement and approved appearance sample.
• Set total plating build: about 3 microns for standard retail pins and 5 microns for heavier keychains, bottle openers or coins.
• Require tape adhesion testing on flat plated areas after cooling and curing, not immediately off the plating rack.
• Classify peeling, blistering, exposed base metal, cloudy front plating and black spots on logo areas as major defects.
• For sea shipment, pack only after parts are dry; trapped moisture in polybags can create tarnish spots within 7 to 14 days.
• For nickel-free claims, require written confirmation of the plating route and the applicable REACH or EN 1811 test basis where relevant.

Test Hardware Under Real Use Loads

Attachments often pass a quick table check and fail in use. A butterfly clutch may feel tight at inspection but release when pulled through fabric. A split ring may open after keys are loaded. A magnet may hold in a straight pull test but slide down a painted steel surface because the real failure mode is shear. Final inspection should test the assembled product under the same direction, load and duration the customer will apply.

For lapel pins, inspect post weld strength and clutch fit together. A common requirement for 25 to 35 mm pins is no post detachment under 2.0 to 3.0 kg pull force, with post angle within +/-5 degrees from perpendicular. Larger brooches above 45 mm may need a bar pin, dual posts or a safety clasp to prevent rotation and fabric damage. For keychains, specify split ring wire diameter, commonly 1.2 to 1.8 mm, and reject rings that leave a permanent gap over 0.20 mm after assembly.

Magnet specifications need the magnet grade, diameter or shape, adhesive type, recess depth and holding test. A thin rubber magnet on a lightweight fridge magnet is not equivalent to a neodymium magnet set into a zinc alloy coin. For heavy metal magnets, use a vertical shear test on painted steel for 24 hours at product weight. For bottle opener coins, test at least 20 opening cycles and reject edge deformation, plating cracks near the opener slot or sharp burrs after use.

Product	Functional check	Suggested pass criterion
Lapel pin	Post pull test	2.0-3.0 kg without detachment; post angle within +/-5 degrees
Brooch	Sag and rotation on medium fabric	No sag over 10 degrees after 30 seconds
Keychain	Split ring closure	No permanent gap over 0.20 mm after hand assembly
Fridge magnet	Vertical shear slide test	No slide on painted steel for 24 hours at product weight
Bottle opener coin	Opening cycle test	No edge deformation, plating crack or burr after 20 cycles
Lanyard attachment	Swivel hook cycle test	No jam, break or spring failure after 50 open-close cycles

Mark Critical Dimensions on the Drawing

A die-struck badge can meet overall size tolerance and still fail if the backstamp is unreadable, the post blocks a backing-card hole, a magnet recess is too shallow, a bottle opener slot is narrow, or a cutout closes during polishing. Final inspection protects only the dimensions that are named. If the drawing does not identify critical-to-function points, the inspector may measure width and height while missing the feature that controls assembly, scanning or brand approval.

For small metal badges, realistic overall size tolerance is +/-0.30 mm for stamped iron or brass and +/-0.40 mm for zinc alloy casting. Thickness tolerance is commonly +/-0.20 mm for flat pins and +/-0.30 mm for thicker coins. Critical features need separate limits: post position +/-0.50 mm, magnet recess depth +/-0.20 mm, backing-card slot location +/-0.30 mm, bottle opener slot width +/-0.20 mm and QR-code flatness within 0.10 to 0.20 mm where scanning matters. Backstamp depth should normally be no less than 0.15 mm for legibility after plating; antique finishes often need deeper marks because dark fill and wiping reduce contrast.

Avoid specifying +/-0.05 mm on decorative cast metal unless the part has a true mechanical interface. That tolerance may require CNC secondary processing or heavy sorting without improving the buyer experience. For most promotional orders, identify 3 to 6 critical dimensions and leave purely decorative contours under normal craft tolerance. The inspection report should include caliper photos for those points, not only a statement that size is acceptable.

Control Mixed SKUs and Carton Accuracy

Mixed product orders now fail as often in packing as in manufacturing. A campaign may include 2,000 enamel pins, 1,000 keychains, 500 coins and 300 VIP brooches, each with different backer cards, barcode labels and destination splits. The products can be acceptable while the shipment fails because the blue variant is short-packed, retail barcodes are swapped, destination marks are wrong, or sealed inner cartons contain mixed SKUs.

Issue one packing matrix with SKU code, product image, approved artwork revision, quantity per inner bag, quantity per inner carton, quantity per master carton, carton mark, gross weight limit and destination code. Dense metal goods should usually stay under 12 to 15 kg gross weight per carton to reduce crushing, courier surcharges and warehouse complaints. Bulk pins are commonly packed 50 or 100 pieces per inner bag. Gift-boxed coins may be packed 25 to 50 pieces per carton depending on box size, insert thickness and carton strength.

Final inspection should sample cartons, not only loose goods from open trays. A practical minimum is to inspect at least the square root of total cartons for SKU mix, inner quantity and label accuracy. For a 60 carton order, that means 8 cartons. For retail distribution, inspect all master carton labels and sample at least one inner pack from each SKU and destination. Wrong barcode, wrong destination mark or mixed SKU in a sealed inner carton should be major because it creates receiving errors after arrival.

• Freeze SKU codes before packaging artwork is released.
• Use one packing matrix for all items, including spare clutches, chain styles, backing cards and gift boxes.
• Set a carton gross weight limit, commonly 12-15 kg for dense metal promotional goods.
• Require product photo, SKU code, quantity, PO number and destination code on each master carton label.
• For split shipments, print destination codes on both inner cartons and master cartons.
• Treat barcode mismatch, wrong backing card and wrong carton quantity as major defects, not administrative notes.

Choose AQL Levels by Commercial Risk

AQL is a sampling plan, not a promise that the delivered lot contains only that defect percentage. Many buyers use ANSI/ASQ Z1.4 or ISO 2859-1 general inspection level II with AQL 2.5 for major defects, AQL 4.0 for minor defects and critical defects at 0. That is workable for standard giveaway orders. It may be too loose for licensed retail packs, child-facing accessories, museum shop coins, launch kits or any product where front-face defects create returns.

For a 5,000 piece order inspected under general level II, the sample size is commonly 200 pieces. Under AQL 2.5 for major defects, the lot can pass with up to 10 major defects and fail at 11 under the common single-sampling table. Under AQL 1.5, the same 200 piece sample passes at 7 and fails at 8. These numbers are not quality targets; they are lot acceptance rules. If the brand expects near-perfect front faces, use tighter cosmetic definitions, a higher inspection level or 100% sorting for named defects such as front plating pits, wrong enamel fill, weak clasp fit or unreadable QR codes.

Cost and time must be planned. A normal final random inspection for many orders under 10,000 pieces can be completed in 1 working day if goods are packed and accessible. Full sorting for plating bubbles, enamel contamination, magnet shear or clasp strength can add 1 to 4 days and USD 0.02 to 0.08 per piece depending on complexity. If air freight is already booked, a failed final inspection can cost more in delay and rework than the stricter inspection would have cost upfront.

Order risk	Suggested inspection approach	When it makes sense
Standard giveaway	General level II, AQL 2.5 major, 4.0 minor, critical 0	Bulk event pins and low retail exposure
Retail or licensed brand	General level II or III, AQL 1.5 major, 2.5 minor, critical 0	Gift boxes, museum shops and character products
Child-facing item	Critical 0 plus sharp-edge, small-part and functional checks	School events, youth clubs and toy-like accessories
Known process risk	AQL plus 100% check for named defect	Black nickel plating, magnets, moving parts or epoxy domes
VIP or award item	Tight visual criteria with 8-10 second front-face viewing	Executive coins, premium brooches and awards

Build MOQ, Lead Time and QC Gates into the PO

The useful inspection is the one that catches the right defect early enough to correct it. For custom metal promotional orders, plan three gates: pre-production sample approval, first-article production check and final random inspection. Skipping the middle gate is risky when the order includes new tooling, new plating, epoxy, magnets, moving hardware, QR codes, retail packaging or multiple SKU versions.

A realistic 2026 lead-time plan is 5 to 8 days for artwork adjustment and tooling preparation, 7 to 12 days for pre-production samples, 10 to 18 days for mass production at normal MOQ, and 2 to 5 days for inspection, rework buffer and export packing. For 500 to 1,000 pieces, production may be faster, but tooling and sample time do not shrink much. For 10,000 pieces or mixed sets, add 3 to 7 days for staged production, carton control and destination sorting. If third-party lab testing is required for nickel release, lead, cadmium or phthalates in accessories, add 5 to 10 working days unless valid component reports already exist.

MOQ and FOB prices vary by process. Soft enamel pins are often practical from 100 to 300 pieces per design, with better pricing at 500 and 1,000 pieces. A 25 mm soft enamel pin may be FOB USD 0.35 to 0.75 at 1,000 pieces, while the same item at 300 pieces may be USD 0.70 to 1.20 because tooling and setup are spread over fewer units. A 50 mm challenge coin may run FOB USD 1.20 to 3.50 depending on thickness, edge detail, plating, enamel count and packaging. Keychains with 1.5 mm split rings and epoxy domes often sit around FOB USD 0.65 to 1.60 at 1,000 pieces.

Before releasing the purchase order, send one QC sheet with approved artwork, golden sample photos, Pantone references, critical dimensions, plating requirement, hardware tests, AQL levels, packing matrix and defect classifications. For new tooling or hard launch dates, add a first-article checkpoint after the first 50 to 100 production pieces. Approve mass production only after those pieces pass the same cosmetic, dimensional, functional and packing checks planned for final inspection. That checkpoint catches weak posts, shallow backstamps, plating shade drift, wrong packaging assumptions and magnet failures while there is still time to correct the line.
