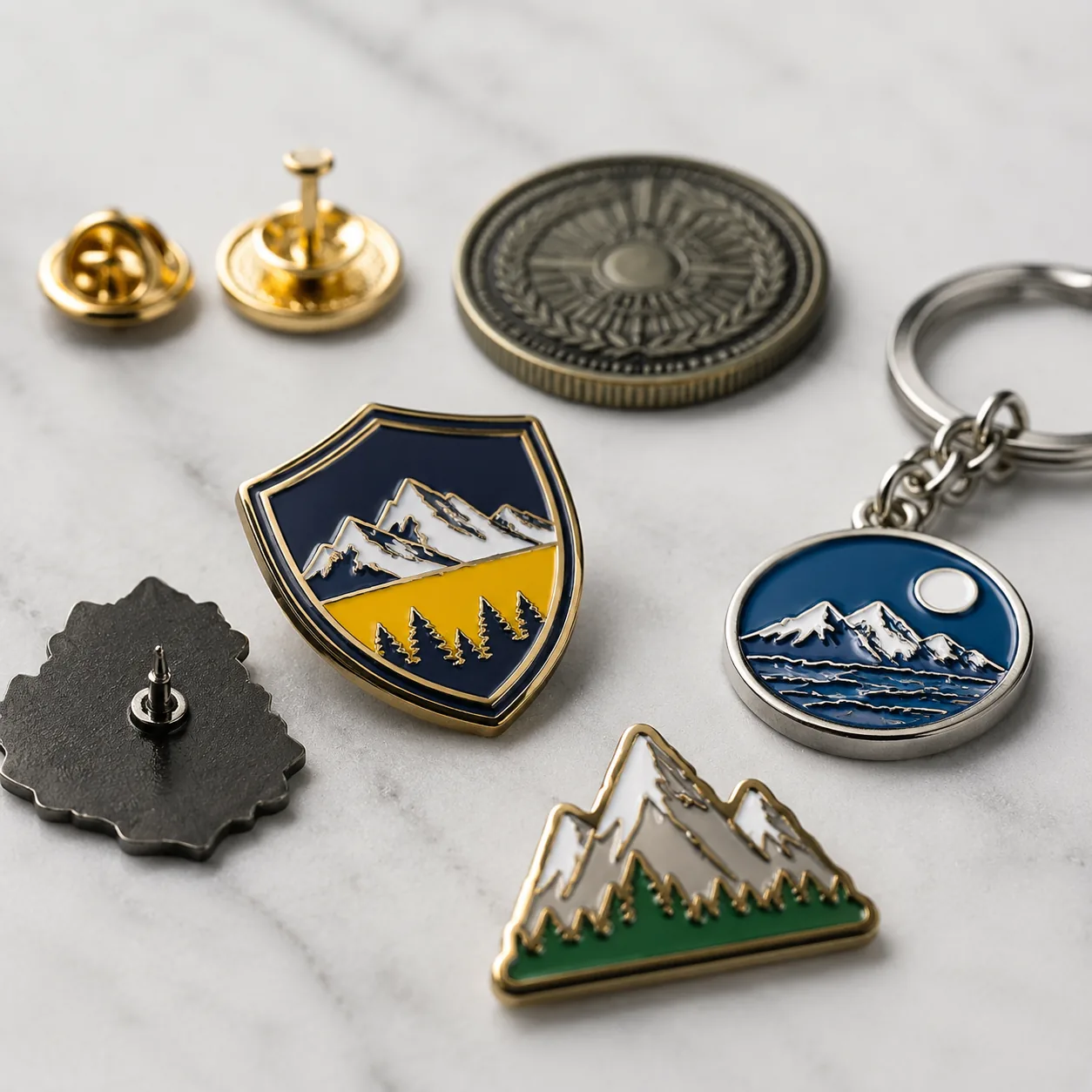

Custom Metal Giveaway Spec Sheet: What to Lock Before Quote

Why RFQs fail on metal giveaways

Most rework on custom metal giveaways starts before production, not on the line. Buyers request a pin, coin, badge, or keychain with artwork and a target price, but leave out the variables that control tooling, yield, finish quality, and inspection. The factory fills those gaps with assumptions, and those assumptions are where disputes begin.

A strong RFQ is a production specification, not a wish list. It should tell the supplier what to make, how to make it, what is acceptable, and which sample controls the order. In practice, the same omissions cause most problems across promotional metal products: missing thickness, vague plating tone, no tolerance on layer alignment, no corrosion requirement, and no packing rule. Once those points are locked in writing, quotes become comparable and sample approval moves faster.

The goal is not to overcomplicate the order. It is to remove hidden decisions from the factory side. For repeatable quality, every critical choice should be made before the mold or die is cut.

Base metal, process, and thickness

Start with the substrate because it drives tooling method, weight, plating behavior, and price. For custom promotional metal products, the common base metals are iron, zinc alloy, brass, and stainless steel. Iron is usually the lowest-cost option for stamped parts, but it is less suitable for deep 3D relief and can show rust if surface protection is weak. Zinc alloy works well for cast shapes with thicker volume and smooth contours. Brass is preferred when you want crisp detail, a more premium hand feel, and better plating appearance. Stainless steel is used less often for decorative giveaways because it is harder to form and polish, but it is useful where corrosion resistance matters more than relief depth.

The spec should name both the metal and the build method. If the application is cost-sensitive, a supplier can quote from iron versus zinc alloy versus brass with much more accuracy than from artwork alone. For flat stamped pins and badges, a practical thickness is 1.0–1.5 mm. For die-cast or 3D items, 1.8–3.0 mm is common. Coins usually sit at 2.5–4.0 mm depending on edge style and relief depth. Thin items below 1.0 mm can flex, while parts above 4.0 mm become heavy quickly and raise freight cost.

Use weight as a spec item, not an afterthought. A small lapel pin may be 4–8 g, a typical 25–30 mm coin 10–22 g, and a thicker keychain 15–35 g depending on insert, chain, and ring. If the product will sit on clothing or in a presentation box, confirm total weight and center of gravity so it does not tilt or pull unevenly.

Spec field	Typical buyer range	Why it matters
Base metal	Iron, zinc alloy, brass, stainless steel	Controls tooling method, feel, corrosion behavior, and price
Flat stamped thickness	1.0–1.5 mm	Balances rigidity, polishability, and cost
Cast thickness	1.8–3.0 mm	Supports 3D relief without excessive weight
Coin thickness	2.5–4.0 mm	Affects edge definition, hand feel, and shipping weight
Unit weight	4–35 g	Impacts retail perception and freight cost

Size, tolerance, and geometry

Size is not just a visual field; it drives plating coverage, material use, and packaging fit. Buyers often specify only the outer dimension, but the useful spec also needs tolerance, shape type, and key geometry. A 25 mm pin and a 30 mm pin can share artwork and still require different mold detail, fill behavior, and carton layout.

Write the spec in measurable terms: width or diameter, maximum thickness, tolerance band, and if needed, hole position or layer offset. For a 30 mm coin, a practical tolerance is ±0.3 mm on diameter and ±0.2 mm on thickness. For cast keychains or irregular badges, ±0.5 mm on the main profile is often realistic. For very small items under 20 mm, tighter control is possible but usually increases scrap and price.

If the product includes cutouts, borders, or layered sections, call out the minimum web width and the offset limit between layers. A 0.2–0.3 mm shift may be acceptable on a large medallion, but on a 22 mm pin it can look like a defect. Define the geometry in a way that a QC inspector can measure without interpreting the artwork.

For RFQ purposes, the safest approach is to specify the critical-to-fit dimensions and leave decorative flourishes secondary. If the buyer cares about edge crispness, say so. If the piece must fit inside a card window or foam insert, provide the exact pocket size, not only the product diameter.

Finish, plating, and coating limits

Plating is one of the easiest places to over-specify incorrectly. Buyers often ask for “gold” or “silver” without saying whether they want bright, antique, brushed, or matte. That is not enough. In metal giveaways, visual decorative plating is usually thin, while durability depends more on surface preparation, underlayer quality, and sealing than on color name alone.

The finish spec should name the tone and the surface texture. Bright nickel gives a sharper reflective look. Antique silver, antique brass, and antique gold hide small tooling marks better and are often preferred for coins and challenge-coin style products. Brushed finishes reduce glare but also soften edge definition. If the item will touch skin, state whether it must be nickel-free and which compliance route applies, such as material declaration, barrier coating, or third-party test report. Do not assume the supplier will choose the right route without being asked.

For longer-life or humid environments, ask for anti-tarnish protection or a clear lacquer where appropriate. If the product will be mailed, handled, and displayed, a thin clear coat can reduce early oxidation and fingerprinting. The finish spec should also say whether minor polishing lines are acceptable and whether the back side may be less refined than the front. Otherwise the factory may spend labor on noncritical areas and underfinish the visible side.

If the item is intended for a corporate gift box or retail display, define the appearance standard in plain terms: mirror bright, satin, antique, or matte; front-only cosmetic grade or full-surface cosmetic grade; and whether pin backs, edges, and recesses may show darker tone variation. The factory can then quote the right process instead of choosing the cheapest acceptable look.

Color fill, print, and surface detail

If the product includes enamel fill or printed artwork, separate the line work from the color areas. For soft enamel, the metal walls are typically raised above the fill, which creates texture and a defined edge. Hard enamel is polished level after fill and gives a smoother face. If you want a flat premium surface, say so explicitly. If texture is acceptable and cost is more important, soft enamel is usually the better fit.

Add concrete drawing rules. A practical minimum line width is 0.20–0.25 mm for enamel work, with a minimum color gap of 0.20 mm to keep colors from bleeding together. Small text should generally be no less than 4–5 pt equivalent in the final metal size, and fine lines should not be thinner than 0.15–0.20 mm unless you accept partial loss in mass production. For printed details, define the print method, because UV print, screen print, and offset decoration each handle gradients and microtext differently.

Use one color reference system across the whole promo set. Pantone is the cleanest option for production; visual reference cards are useful only as a secondary check. If a brand uses a specific red or blue, list the Pantone code, acceptable delta, and whether slight shift is allowed under cured enamel or UV print. Do not leave color matching to “close enough.”

A practical enamel specification should also say whether metallic fill, glitter, transparent color, or glow-in-the-dark pigment is allowed. Those effects change curing behavior, hardness, and unit price. For example, a two-color soft enamel pin with standard fills may quote at the low end, while a five-color design with glitter and epoxy dome will typically cost more and take longer to approve because the visual target is harder to match.

• State the decoration method: soft enamel, hard enamel, UV print, screen print, or no fill
• Set minimum line width, minimum gap, and smallest readable text size
• Define whether gradients, halftones, metallic inks, or transparent areas are allowed
• Lock the color reference system and required Pantone codes
• Require approval of the first physical sample before mass production

Attachment, hardware, and wear performance

Hardware is where otherwise good products become returns. For pins, specify the post count, post diameter, clutch type, and post position. For keychains, define the ring style, chain length, swivel or split ring type, and connector. For magnets, state the magnet grade, size, and placement pattern. For bottle openers or multitool giveaways, add the load-bearing point and acceptable lever flex. If the back side is not defined, the supplier may choose the cheapest standard option and still consider the order complete.

A good spec includes functional targets. A pin intended for clothing should hold firmly without tearing fabric, which usually means a balanced post and clutch combination rather than maximum grip. A keychain should survive repeated pulling without the ring opening under normal use. If the item has moving parts, state whether it must return to center, how much free play is allowed, and whether a rattle is acceptable. If you do not define motion limits, the factory has no basis for rejecting an off-center assembly.

Use hardware language that prevents substitutions. Do not write “standard attachment” or “usual keyring.” Specify the exact hardware type, finish, and, if possible, the supplier standard. If you need a stronger build, say so in grams of pull force, cycle count, or simple usage expectation such as “daily bag carry for 12 months.” The more precise the usage case, the less likely a weaker part will slip through.

For magnets, include pull strength where possible. A small flat magnet may be acceptable at 400–700 g pull, while a larger promotional fridge magnet may need 900 g or more depending on backing thickness. For keychains, ask for ring wire diameter and whether the finish must match the body plating. Those small details often drive visible consistency more than the main part itself.

Inspection, tolerance, and sample control

Tolerance is the difference between professional consistency and visible variation. Write down acceptable variation on size, hole position, offset between layers, border width, and artwork registration. For small badges and pins, a 0.3 mm misalignment can be obvious. For larger medallions, the same offset may be acceptable. The point is to define the limit before anyone produces the first batch.

The most reliable approval chain has three checkpoints: artwork approval, pre-production sample approval, and shipment inspection. State which sample controls the order if there is any conflict. In many cases the golden sample should override the drawing for appearance details, while the drawing should override the sample for dimensions and compliance data. For repeat orders, lock the approved sample number, version date, and any color corrections so the factory does not guess which revision to follow.

Inspection language should be specific enough for incoming QC. A standard approach for general promotional goods is AQL 2.5 for major defects and AQL 4.0 for minor defects, unless the buyer requires tighter control. Major defects would include wrong artwork, wrong attachment, plating peel, broken hardware, or incorrect color. Minor defects might include tiny surface marks, slight color drift, or packaging scuffs within the agreed limit. If you omit the AQL level, every shipment becomes a negotiation.

If the order is high visibility or retail-facing, add a sample inspection clause for first carton, middle carton, and last carton checks. That prevents a perfect top layer from hiding variation in the balance of the batch. For repeat programs, note whether the seller may ship against retained approved samples or must submit a new sample after any tooling, plating, or color change.

Control point	What to write	Typical risk if omitted
Artwork	File version, Pantone codes, text, and line rules	Wrong shape or unreadable details
Sample	Golden sample or pre-production sample controls	Supplier follows the wrong reference
Tolerance	Size, offset, hole position, and layer alignment limits	Visible misalignment and fit issues
Inspection	AQL level and defect categories	Disputes over what counts as acceptable

Packing, carton rules, and commercial terms

Packing looks secondary until it causes damage, count errors, or customs delays. For custom metal giveaways, specify the inner pack, unit bag, backing card, divider tray, master carton size, and piece count per carton. If items can scratch each other, individual OPP bags or trays are worth the small added cost. For retail-ready sets, define card orientation, hook direction, and barcode placement before printing starts.

The carton standard should also cover net weight, gross weight, and label format. If a buyer needs branch, event, or campaign distribution, packing at source is more efficient than repacking after arrival. For mixed-SKU programs, say whether different SKUs may share one master carton. Also define the acceptable transit mark standard on plated surfaces, because a tiny rub mark may be normal to one buyer and a rejection to another.

Commercial clarity matters as much as product clarity. Ask for prices in USD FOB and separate mold or tooling from unit price. For simple stamped pins, FOB pricing may run about $0.35–$1.20 per piece at 500–1,000 pcs, with tooling around $120–$350 depending on size and complexity. For cast zinc alloy badges or keychains, unit pricing often sits around $0.80–$2.80 at 500 pcs, rising to about $1.50–$4.50 at 100 pcs for lower-volume quotes. Coins with heavier plating or higher relief can land around $1.10–$3.50 each at 300–1,000 pcs.

Typical MOQs are 100 pcs for simple shapes, 300 pcs for standard cast items, and 500 pcs for more complex color or packaging programs. Lead times are usually 12–18 days for samples and 18–30 days for production after approval, plus 3–7 days for custom packing or printed backing cards. If the order needs packaging design changes, add that time before the production clock starts. Quote lead time should always start from final drawing and sample approval, not from first inquiry.

If freight timing matters, ask the supplier to state whether the quoted FOB date assumes ready artwork, approved PMS references, and no revision loop. A fast quote that hides revision time is not actually fast. Clear lead-time language keeps procurement, design, and logistics aligned.

What to lock before quote

If you want clean pricing, send one spec sheet to every supplier and quote the same version. Lock the material, build method, size, thickness, finish, color method, attachment, tolerance, inspection standard, and packing standard before asking for a number. If the order includes a pin, coin, badge, keychain, magnet, or mixed gift set, the supplier should quote from the same control document, not from a picture thread or a vague email.

Use this checklist before you release the RFQ: make sure the drawing and sample route are aligned, the commercial terms are written, and the packaging is defined. If one of those is missing, the quote may still arrive, but it will not be comparable.

• Confirm base metal, thickness, and target weight
• Lock size tolerance, layer offset, and hole position
• Specify plating tone, finish texture, and any anti-tarnish layer
• Define decoration method, minimum line width, and Pantone codes
• Name the attachment type, hardware finish, and retention expectation
• State AQL level, sample control, and inspection checkpoints
• Set MOQ, FOB pricing basis, lead time, and packing standard

When those fields are set, rework risk drops sharply. Pricing becomes easier to compare, first samples arrive closer to final approval, and repeat orders stay consistent instead of drifting. That is the real value of a spec sheet: fewer surprises, less back-and-forth, and a cleaner path from artwork to shipment.
