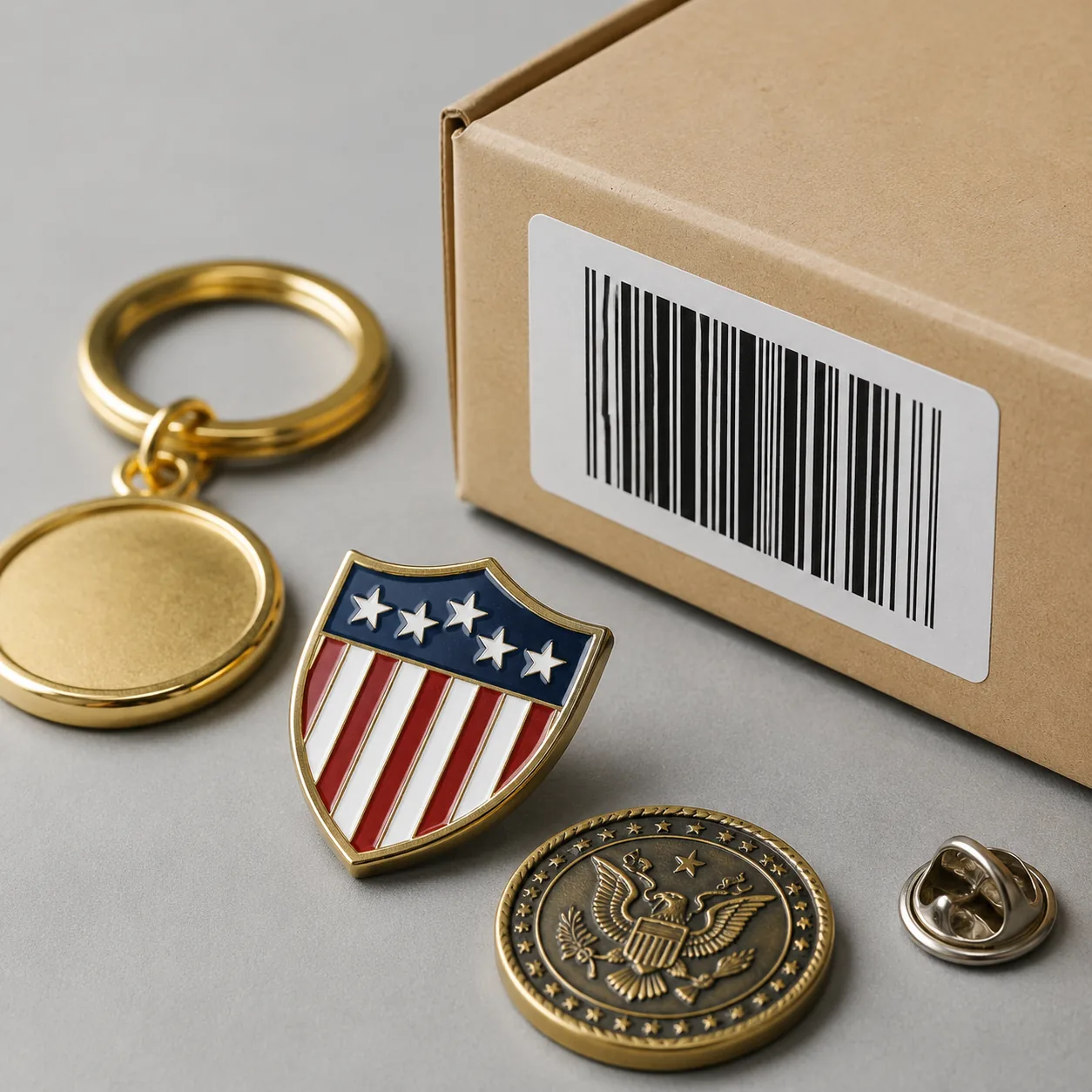

Barcode and Retail Label Specs for Custom Promo Products

Why finished goods still fail receiving

A shipment can pass product inspection and still be refused at a buyer’s warehouse. The product may be correct, but the unit label does not scan, the SKU on the inner bag does not match the master carton, or the barcode sits under a retail sleeve fold. For distributors, museums, event teams and licensed merchandise programs, this is an avoidable chargeback. The factory sees finished goods; the warehouse sees non-compliant inventory.

For custom pins, challenge coins, PVC patches, woven patches, magnets, keychains and lanyards, label specifications are often smaller than the product drawing but just as important operationally. A 30 mm soft enamel pin with accurate Pantone fill can still trigger relabeling if the UPC is reduced below scanner limits or if the carton label omits the purchase order number. Relabeling in a U.S. 3PL commonly costs 0.20 to 0.75 USD per unit for simple stickers and more when cartons must be opened, sorted and resealed.

The practical goal is not to add labels everywhere. It is to define the few label levels, data fields, sizes, barcode formats and placement tolerances needed for smooth receiving. Confirm these before pre-production sampling, not after mass packing, because the package layout must reserve flat, readable label space.

Choose the correct label level

Not every promotional item needs a unit barcode. A corporate giveaway pin handed out loose at an event may need only master carton marks and a count label. A museum shop magnet, retail keychain, licensed patch or e-commerce assortment usually needs a scannable unit barcode plus inner pack and master carton labels. Over-labeling adds cost and slows packing; under-labeling creates warehouse exceptions.

Use three working levels. Unit labels identify the saleable item on a polybag, backing card, hang tag, belly band, sleeve or retail box. Inner pack labels identify bundles inside the carton, typically 25, 50 or 100 pieces. Master carton labels support warehouse receiving and must align with the purchase order, SKU, carton count, country of origin wording, quantity, gross weight and net weight.

Label level	Typical use	Recommended size	When to skip
Unit label	Retail pins, magnets, patches, boxed coins, keychains	25 x 13 mm absolute minimum; 40 x 20 mm preferred	Skip for loose event giveaways unless inventory tracking requires it
Inner pack label	Bundles of 25, 50 or 100 pcs inside export cartons	50 x 30 mm or 60 x 40 mm	Skip when each master carton contains one SKU and one counted pack
Master carton label	3PL, retailer DC, Amazon-style receiving, event warehouse	100 x 75 mm minimum; 100 x 150 mm for routing data	Do not use as a substitute for printed carton marks if both are required
Pallet label	Retail DC shipments, LTL freight, 20+ carton programs	A5 or 100 x 150 mm	Not needed for courier cartons or small air consignments

For mixed cartons, do not rely on a generic product name such as “custom pins.” State the carton mix clearly, for example: “SKU PIN-103A, 50 pcs; PIN-103B, 50 pcs; PIN-103C, 50 pcs; PIN-103D, 50 pcs; total 200 pcs.” If the label cannot hold the full mix, the carton number must reference an approved packing list with the same carton ID.

Barcode format and scan specifications

Treat the barcode as machine-readable data, not artwork. For retail unit labels, UPC-A is standard for North America and EAN-13 is common internationally. Code 128 is better for internal SKUs, purchase orders, carton IDs and serial ranges because it supports alphanumeric strings. QR codes work well for instruction pages, warranty registration and authentication, but many warehouses still require a linear barcode for receiving.

Small promotional products create a real space constraint. A 25 mm enamel pin in a 60 x 80 mm OPP bag may leave only a 35 x 20 mm flat label area after the clutch, header hole and artwork are considered. A reduced UPC or EAN can scan in that space only if the quiet zones remain clear, the bars are not distorted, and the label does not cross a bag fold or heat seal.

For factory production, specify 300 dpi minimum thermal transfer or digital label printing, black bars on matte white stock, ANSI/ISO print quality target of grade C or better where verification is available, and quiet zones of at least 2.5 mm on each side for small linear codes. Unit barcode height should be 10 mm minimum and 12 to 15 mm preferred. Carton barcode height should be 20 to 32 mm. QR codes should be 18 x 18 mm only for short, low-density data; 25 x 25 mm is safer after bag wrinkles, carton abrasion and warehouse lighting are considered.

Code type	Best use	Practical minimum	Control point
UPC-A	North American retail unit barcode	30 x 15 mm including quiet zones	Use only buyer-assigned or GS1-controlled numbers
EAN-13	International retail unit barcode	30 x 15 mm including quiet zones	Avoid heavy reduction on textured or colored cards
Code 128	SKU, PO, carton ID, serial range	40 x 12 mm for short strings	Long SKUs become dense; shorten the encoded value where possible
QR code	Instructions, registration, campaign URL, authentication	18 x 18 mm simple code; 25 x 25 mm preferred	Scan the printed label, not only the PDF proof
Data Matrix	Compact internal ID or traceability code	10 x 10 mm for short data	Confirm the warehouse scanner is configured to read it

Label stock, adhesive and surface fit

A label that scans on a desk can fail after ocean freight if the adhesive lifts, the ink smears, or carton tape creates glare over the code. Label stock must match the packaging surface and transport environment. Paper labels are economical for dry, flat OPP bags and corrugated cartons. Synthetic PP or PET labels are safer for humid routes, retail handling, frosted zipper bags, curved PVC packaging and longer storage.

For standard metal pins, coins and keychains in OPP bags, a 60 to 80 gsm matte paper label with permanent acrylic adhesive is usually sufficient. For PVC patches, fridge magnets, frosted bags, coated hang tags or retail sleeves, specify 50 to 70 micron PP synthetic stock. For powder-coated tins, velvet boxes, textured kraft cards and soft-touch laminated cartons, run an adhesion test before approval because permanent adhesive can still lift or damage the surface during removal.

Application conditions matter. Cartons and bags should be clean, dry and above 15 degrees Celsius at the time of labeling. Avoid placing barcodes over BOPP tape seams, shrink-wrap seams, carton corners, zipper tracks or curved product bulges. If cartons will be stretch-wrapped on pallets, scan a wrapped sample because film glare can reduce contrast.

• Use matte white label stock for barcodes unless the retailer’s guide specifies otherwise.
• Avoid clear barcode labels on colored packaging; contrast is usually weaker.
• Keep barcodes off bag folds, heat seals, zipper seals, carton edges and tape seams.
• Use permanent adhesive for export cartons; removable adhesive belongs on temporary price labels only.
• Test label removal on premium gift boxes to check for torn paper, lifted lamination or adhesive residue.
• Reject labels with smeared bars, low contrast, wrinkles through the code or missing quiet zones.

Data fields and tolerances to lock

Most label failures come from data control, not label printing. The RFQ may use a marketing name, the artwork file may use a design nickname, and the purchase order may use a buyer SKU. If the factory packs from email text instead of one approved data sheet, outdated item numbers can appear on cartons even when the product is correct.

For a single-SKU order, lock the buyer SKU, factory item description, barcode type, barcode number, PO number, quantity per inner pack, quantity per master carton, carton number, gross weight, net weight and country of origin statement. For mixed assortments, add design number, colorway, finish, size, attachment type, backing type and set ratio. For example, “PATCH-WOV-75-RED, merrowed edge, iron-on backing, 75 mm, 100 pcs/carton” is much safer than “red patch.”

Define tolerances in the packing specification. Printed label size should be within plus or minus 1 mm. Unit label placement on bags or cards should be within plus or minus 3 mm unless the buyer provides a stricter dieline. Master carton label placement can usually be plus or minus 10 mm, provided the label is on the approved carton face and remains flat. Barcode content has zero tolerance: one wrong digit, missing character or mismatched SKU is a critical defect.

Field	Where it must match	Common failure
Buyer SKU	Unit label, inner label, carton label, packing list	Factory uses the artwork file name instead of the buyer item number
Barcode number	Unit label and approved data sheet	Digits are correct visually but encoded data is different
PO number	Master carton label, packing list, invoice if requested	Cartons arrive at a 3PL with no PO reference
Quantity	Inner pack label, carton label, packing list	Carton says 500 pcs but contains 10 bags of 48 pcs
Design or color code	Unit and inner labels for assortments	Similar colorways are mixed because only a product name is shown
Carton number	Master carton label and packing list	Warehouse cannot reconcile partial shipments or split deliveries
Gross and net weight	Carton label and packing list	Weights are copied from the quotation, not final packed cartons

Placement by product type

Label placement must fit the physical product, not just the package drawing. A pin on a backing card should not have the barcode covering the pin face, brand logo, choking hazard warning or attachment instructions. For a 30 mm enamel pin on a 55 x 85 mm card, the back lower third usually provides the cleanest 40 x 20 mm label area. Keep at least 3 mm from card edges and punched hang holes.

Challenge coins need the label on the saleable outer package. If the coin is sold in a velvet box, label the outer sleeve or box base, not the capsule inside. If the coin is packed loose in a capsule for fulfillment, place the unit label on the bag or small carton so the code can be scanned without opening the package. Do not place adhesive labels directly on plated coin surfaces unless the label is part of the approved retail design.

For woven and PVC patches, header cards can usually carry the code on the back bottom-right corner, with 5 mm clearance from the hang hole and heat-seal area. For acrylic or metal keychains in OPP bags, place the label on the back of the bag below the split ring so the ring does not rub the printed bars during transit. For lanyards, label the individual polybag or header card rather than the fabric strap because woven and sublimated material bends, sheds fibers and gives poor adhesion.

Magnets need pressure-transfer control. Do not sandwich small adhesive labels between stacked magnets if the adhesive can transfer under compression. For fridge magnets in retail sleeves, label the sleeve or bag. For magnetic badges with a separate backer plate, keep the label away from assembly instructions and polarity warnings.

• Approve a packing mockup photo showing unit, inner pack and master carton labels.
• Keep unit barcodes visible without opening the polybag, sleeve or retail box.
• Use one consistent label orientation per SKU to speed warehouse scanning.
• Do not cover legal warnings, age grading, choking hazard text, logos or licensed artwork.
• For assortment cartons, add visible design or color codes to reduce picking errors.
• Keep a ruler in mockup photos so label size and placement can be verified remotely.

MOQ, lead time and FOB cost impact

Labels are low-cost when planned before packing and expensive when corrected after shipment. Standard thermal paper unit labels normally add 0.01 to 0.04 USD per piece FOB at 1,000 to 5,000 pieces per SKU. Synthetic PP or PET labels typically add 0.03 to 0.08 USD per piece. Large carton routing labels are usually 0.05 to 0.20 USD per carton, but retailer-specific formats can add labor when every carton needs unique data.

The bigger cost is control. If every unit shares one barcode, production can print one batch and pack continuously. If each design, color, serial number or carton requires variable data, the factory must separate inventory, print controlled label batches, scan samples and reconcile labels against the packing list. Variable labels usually add 1 to 3 days for small orders and 3 to 7 days for complex retail assortments.

MOQ depends on stock and printing method. Plain black thermal labels are practical from 300 to 500 pieces per SKU. Synthetic barcode labels are usually more efficient from 500 to 1,000 pieces per SKU. Full-color hang tags, belly bands and backing-card labels often have a practical MOQ of 1,000 pieces per design because setup, color control and waste are higher. If an order has more than five SKUs, quote labeling separately from the product so the buyer can see the cost of variable data and routing compliance.

Requirement	Practical MOQ	Added lead time	FOB cost impact
Same barcode on paper unit label	300 to 500 pcs per SKU	0 to 1 day	0.01 to 0.04 USD/pc
Synthetic waterproof unit label	500 to 1,000 pcs per SKU	1 to 2 days	0.03 to 0.08 USD/pc
Variable SKU by design or color	500 pcs per SKU practical	1 to 3 days	0.03 to 0.10 USD/pc
Serial-number or carton-specific labels	500 pcs per program practical	2 to 5 days	0.05 to 0.15 USD/pc
Full-color hang tag with barcode	1,000 pcs per design	3 to 6 days	0.04 to 0.15 USD/pc
Retail routing carton labels	Per shipment	0 to 2 days	0.05 to 0.20 USD/carton

Inspection before carton sealing

Label inspection should happen before cartons are sealed, not only during final random inspection. The first control is a first-article label check: print one label for each SKU, scan it with a handheld scanner, compare the decoded value against the approved data sheet, apply it to the actual package, and photograph the result. Mass packing should start only after this check is approved.

For normal promotional product orders, use AQL 2.5 for major label defects and AQL 4.0 for minor appearance defects. Wrong barcode data, missing SKU, unscannable code, incorrect PO number, mixed labels or missing country-of-origin wording required by the buyer should be treated as critical defects with zero acceptance. A label tilted by 4 mm may be minor if it scans and does not violate a routing guide; a barcode with one wrong digit is not minor.

Scan samples from the start, middle and end of the packing run. For variable-data programs, scan at least one sample from every SKU, design, color and serial-number range. For palletized shipments, scan one carton label after stretch wrapping to confirm the film does not create glare or distortion. For mixed cartons, open one carton per SKU group and verify that unit labels, inner labels, master carton labels and the packing list all agree.

• Create one approved label data sheet and do not pack from email instructions alone.
• Scan barcode artwork before mass label printing and scan printed labels before packing.
• Check the first packed sample for every SKU, not just the first design in the order.
• Classify wrong data, missing labels and unscannable codes as critical defects.
• Keep retained label samples with the golden sample and shipment file for reorders.
• Record final carton weights after packing rather than copying estimated quote weights.

Before issuing the purchase order, decide whether the product is a giveaway, retail item or warehouse-managed SKU. If a 3PL, marketplace warehouse or retailer DC is involved, request the routing guide before sampling. Send the factory the barcode type, encoded number, SKU, PO format, quantity per inner pack, quantity per carton, carton wording and placement drawings. For small products, require a scan-tested packing mockup with a ruler before mass production. That one step prevents the common and costly outcome: correct products sitting in cartons while the buyer and factory dispute labels.
