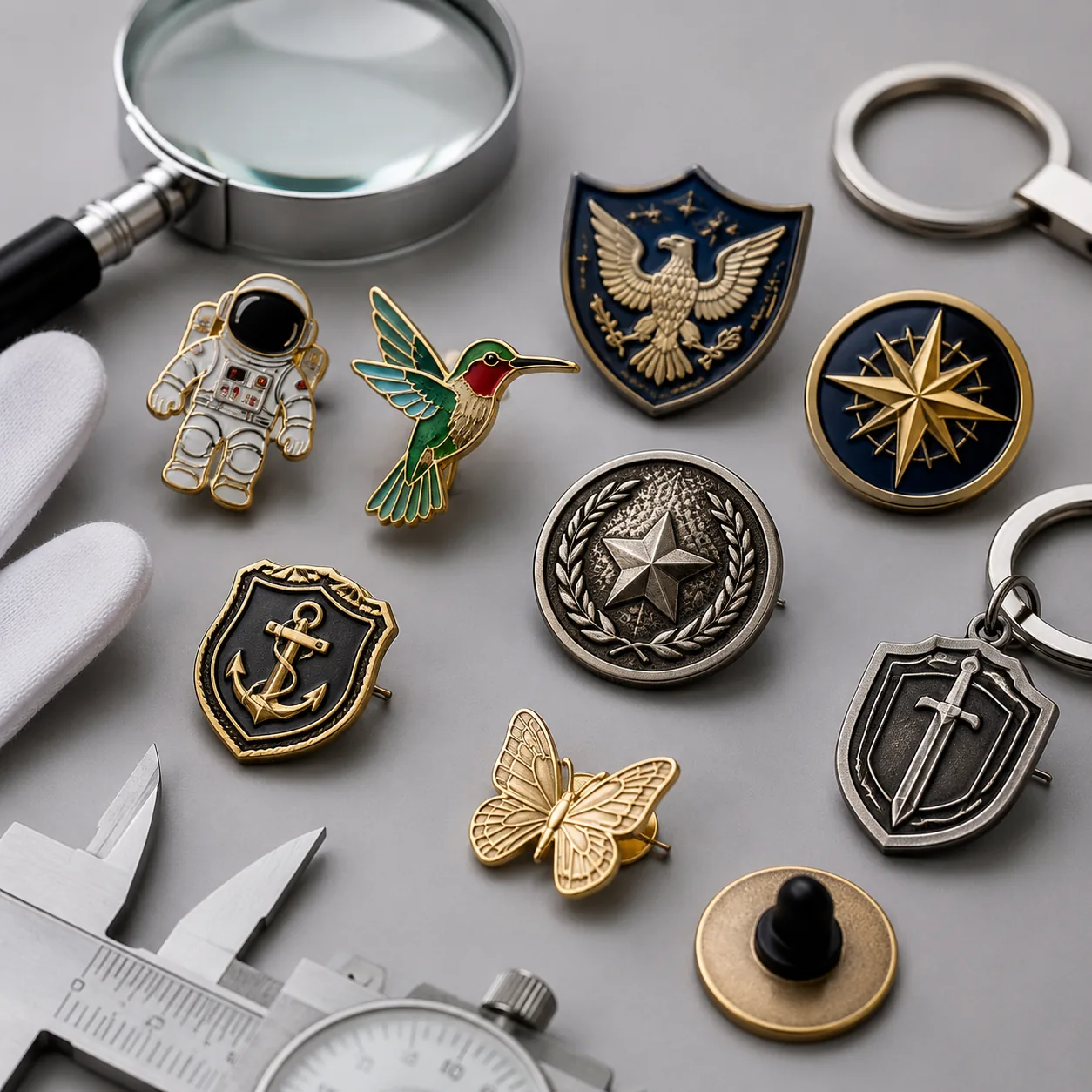

AQL Inspection Specs for Custom Pins and Keychains

Why Photo Approval Is Not Shipment Approval

Staged factory photos rarely show the defects that cause claims after delivery. A lapel pin can look correct from the front while the sidewall has thin plating, the enamel sits below the metal line, the clutch is loose, or the carton contains mixed SKUs. A keychain may pass a beauty photo but fail because the jump ring gap is 0.4 mm, the split ring does not spring back, or the epoxy dome has edge bubbles.

AQL inspection turns “good quality” into a measurable shipment decision. It defines how many pieces to inspect, which defects are critical, major, or minor, and when a lot must be accepted, sorted, reworked, or remade. For custom metal items such as enamel pins, brooches, keychains, challenge coins, fridge magnets, patches, and lanyards, the most useful plan combines AQL sampling with dimensional checks, plating checks, attachment tests, and packaging verification.

AQL is not 100 percent inspection. It is a statistical sampling method normally performed after 80 to 100 percent of production is finished and packed. It controls cost and speed, but it cannot guarantee that no defective piece exists. For safety risks, wrong SKU labels, loose magnets, or weak pin posts, add targeted 100 percent screening or a tighter special inspection level.

Select AQL Levels by Product Risk

For most custom promotional metal products, specify ANSI/ASQ Z1.4 or ISO 2859-1, General Inspection Level II, single sampling, normal inspection. Level II is the export default because it gives a meaningful sample size without turning a 5,000 piece order into an uneconomic audit. Level I may be acceptable for stable repeat orders with simple packaging. Level III is justified for first runs, retail launches, high chargeback exposure, mixed designs, or products with moving parts.

A practical default is Critical 0.0, Major 2.5, Minor 4.0. For premium retail merchandise, use Major 1.5 and Minor 2.5. For low-cost giveaway pins packed loose in OPP bags, Major 2.5 and Minor 4.0 is usually realistic. Tightening every cosmetic issue to Major 1.0 can add USD 0.03 to USD 0.12 per piece if sorting is required, and it may extend dispatch by 2 to 5 days.

AQL does not replace a product specification. The purchase order should state base metal, thickness, finish, plating thickness target, Pantone colors, enamel type, attachment, magnet grade, packaging count, barcode rules, and carton marks. AQL decides pass or fail; the specification tells the inspector what to measure.

Lot size	Level II sample size	Default AQL	Use case	When to tighten
500 pcs	50 pcs	0.0 / 2.5 / 4.0	Small event pin or keychain	New mold, new plating, retail carding
1,000 pcs	80 pcs	0.0 / 2.5 / 4.0	Distributor reorder or campaign	Epoxy dome, magnet, barcode label
3,000 pcs	125 pcs	0.0 / 2.5 / 4.0	Multi-carton promo order	Mixed SKUs, serial numbers, strict brand color
5,000 pcs	200 pcs	0.0 / 1.5-2.5 / 2.5-4.0	Large event or retail rollout	Chargeback risk, moving parts, heavy charms
10,000 pcs	315 pcs	0.0 / 1.5-2.5 / 2.5-4.0	National campaign	No local rework option, child-safety concern

Define Defects Before Tooling Starts

Defect classification must be agreed before production, not negotiated after a failed inspection. A critical defect creates a safety, legal, or severe functional risk and should have zero acceptance. Examples include exposed sharp burrs above 0.2 mm, detached pin posts, broken magnets that create small loose parts, unapproved nickel plating on a nickel-free order, or a split ring that releases the charm during normal handling.

Major defects make the item visibly wrong, commercially unacceptable, or unfit for normal use. For enamel pins, major defects include missing enamel, unreadable text, plating blisters, exposed base metal on the front, wrong Pantone beyond the agreed tolerance, pin posts outside position tolerance, loose clutches, or thickness outside ±0.20 mm on a 1.5 mm iron pin. For keychains, major defects include cracked acrylic, weak jump rings, wrong hardware color, poor epoxy coverage, and assembly length outside ±2.0 mm.

Minor defects are small appearance issues that do not affect normal use. Typical examples are polishing lines under 0.3 mm, a slight enamel meniscus variation, tiny sidewall shade differences, or backing card scuffs not visible on display. For museum shops, licensed brands, and premium retail packaging, many cosmetic defects should be upgraded from minor to major.

• Critical defects: accept 0 pieces; hold shipment and require 100 percent sorting, rework, or remake of the affected lot.
• Major defects: use AQL 2.5 for standard promotional orders and AQL 1.5 for retail or premium brand orders.
• Minor defects: use AQL 4.0 for giveaways and AQL 2.5 when surface finish or packaging drives retail value.
• Reference photos: attach acceptable and unacceptable examples for pits, scratches, plating marks, off-register printing, and crooked pinning.
• No reclassification after failure: a sharp burr, loose magnet, or wrong barcode is not a cosmetic issue just because the quantity is small.

Set Measurable Product Tolerances

Inspection checkpoints should use numbers, not adjectives. For stamped soft enamel pins under 40 mm, set overall size tolerance at ±0.20 mm; for pieces above 40 mm, use ±0.30 mm. Thickness tolerance is normally ±0.15 mm for 1.2 mm iron, ±0.20 mm for 1.5 to 2.0 mm zinc alloy, and ±0.30 mm for cast 3D coins above 3.0 mm. Pin post position should be ±1.0 mm for standard orders and ±0.5 mm for premium retail pieces where balance matters.

Decorative flash plating on promotional pins is thin by design. Typical gold, silver, nickel, black nickel, or rose gold flash is about 0.05 to 0.10 microns. Premium or higher-wear items may specify 0.10 to 0.25 microns, protective lacquer, stainless split rings, or epoxy cover. Do not expect flash plating on a keychain to perform like jewelry plating; keys, pockets, and abrasion will wear it faster.

For color, specify Pantone references and viewing conditions. A practical enamel tolerance is visual match under D65 daylight with Delta E ≤2.5 for brand-critical colors and Delta E ≤4.0 for general promotional colors. Glitter, transparent, glow, pearl, and sandblast enamel should be approved by physical sample because instrument readings can be inconsistent on textured or translucent fills.

Checkpoint	Standard tolerance	Premium tolerance	Inspection method
Overall size under 40 mm	±0.20 mm	±0.15 mm	Digital caliper
Metal thickness 1.2-2.0 mm	±0.20 mm	±0.15 mm	Digital caliper
Pin post position	±1.0 mm	±0.5 mm	Caliper and artwork overlay
Enamel color	D65, Delta E ≤4.0	D65, Delta E ≤2.5	Light booth or approved chip
Front plating surface	No peeling, blistering, exposed metal	No visible scratch over 0.2 mm at 30 cm	Visual and tape check
Backing card cut	±1.0 mm	±0.5 mm	Ruler or caliper

Add Functional Tests for Attachments

Visual AQL is not enough for parts that hold, rotate, clip, or hang. Pin posts, brooch bars, clutches, split rings, jump rings, clasps, bottle openers, spinner rivets, sliders, and magnets need functional checks on sampled units. These tests are fast and prevent the most common complaints: falling pins, lost charms, weak magnets, and jammed moving parts.

For lapel pins, specify a post pull test of 5 kgf for 10 seconds on standard promotional pins and 7 kgf for heavier badges above 35 mm. Detached posts, cracked solder pads, and sharp failed welds should be major or critical depending on risk. Butterfly and rubber clutches should hold firmly but still be removable by hand; an over-tight clutch can bend a 0.9 to 1.1 mm post.

For keychains, open the split ring once with a 1.5 mm test blade and confirm it returns without a permanent gap above 0.3 mm. Jump rings should have a visible gap under 0.2 mm, or be soldered for heavy charms above 35 g. For magnets, test on a clean 1.0 mm painted steel plate; reject pieces that slide under their own weight when held vertical unless the design was specified as decorative only.

• Pins: pull test 5 kgf for 10 seconds; use 7 kgf for large badges or heavy attachments.
• Brooches: open and close the safety catch 5 cycles; reject loose catches, tilted bars, and snagging edges.
• Keychains: ring gap under 0.3 mm after opening; jump ring gap under 0.2 mm or solder for heavy charms.
• Magnets: verify holding force on painted steel; reject cracked magnets, exposed glue, and sliding pieces.
• Moving parts: cycle-test at least 20 sampled units for 20 operations; reject jamming, metal dust, loose rivets, and sharp wear points.

Inspect Packaging, Cartons, and Labels

Many claims come from packing errors rather than product defects. A good pin still creates a chargeback if the barcode is wrong, the backing card is upside down, the carton count varies, or unprotected pieces rub through plating during transit. The inspection plan should cover unit packaging, inner carton counts, master carton marks, export labels, and carton strength.

Define the exact unit pack: loose OPP bag, backing card plus OPP bag, velvet pouch, PET box, kraft box, or retail paper box. Standard OPP bags are 0.03 to 0.05 mm thick; 0.06 mm bags reduce tearing but increase bulk. Retail backing cards are commonly 300 to 400 gsm coated paper, with hanger holes and pin slots held within ±1.0 mm so the product hangs straight.

Control carton weight. For enamel pins, keep master cartons under 15 kg gross weight. For challenge coins, target 10 to 12 kg because a 45 mm zinc alloy coin can weigh 35 to 45 g before packaging. Use dividers or inner boxes for plated keychains and coins to reduce abrasion during sea freight. Sampling should be carton-distributed: pull from every master carton for small orders, or from at least 30 percent of cartons for larger lots.

Packing item	Typical specification	Common defect	Inspection action
OPP bag	0.03-0.05 mm, sealed or self-adhesive	Torn bag, exposed product	Major if scratching or retail-facing
Backing card	300-400 gsm, hole and slots ±1 mm	Wrong artwork, crooked pinning	Major for retail orders
Inner pack	Fixed count, often 50-200 pcs	Mixed designs or shortages	Major
Master carton	Pins under 15 kg; coins 10-12 kg	Weak carton, wrong mark	Major
Export label	PO, SKU, quantity, country, carton number	Barcode or SKU mismatch	Major or critical by retailer rule

Budget QC Into MOQ, Price, and Lead Time

Quality level affects quoting. Common MOQs are 100 pcs per design for enamel pins, 300 pcs for zinc alloy keychains, 100 to 300 pcs for challenge coins, and 500 pcs for magnets or lanyards. A 100 piece enamel pin order may cost USD 1.20 to 3.50 FOB per piece because the mold charge and setup dominate. At 1,000 pcs, the same general pin may be USD 0.35 to 0.95 FOB depending on size, colors, plating, and packaging. At 5,000 pcs, simple designs often fall to USD 0.22 to 0.65 FOB.

For keychains, typical FOB ranges are USD 0.75 to 2.40 at 300 pcs, USD 0.55 to 1.80 at 1,000 pcs, and USD 0.38 to 1.20 at 5,000 pcs. Challenge coins usually range from USD 1.20 to 4.50 depending on diameter, thickness, edge type, plating, 3D relief, and presentation box. Stricter QC does not always raise the quoted unit price, but failed-lot sorting typically adds USD 0.03 to 0.20 per piece and 2 to 5 days.

Normal lead time after artwork approval is 2 to 4 days for digital proofing, 5 to 7 days for mold and pre-production sample if required, and 12 to 18 days for enamel pin mass production. Keychains and challenge coins usually need 15 to 25 days. Patches are often 10 to 18 days, and lanyards 7 to 15 days depending on printing. Reserve a 2 to 3 day buffer for third-party inspection booking, report review, and possible rework before cargo handover.

Write the Inspection Clause in the PO

The inspection clause should be in the RFQ and purchase order before tooling starts. Attach approved artwork, Pantone references, plating chip, golden sample, packaging layout, carton mark, and defect photos. This prevents a common dispute: the supplier judges the lot as commercially acceptable, while the buyer applies a stricter retail standard that was never quoted.

A practical clause is: “Final inspection under ANSI/ASQ Z1.4, General Inspection Level II, single sampling, normal inspection. AQL: Critical 0.0, Major 2.5, Minor 4.0. Samples must be drawn across cartons. Inspection to include dimensions, plating, enamel color, attachment strength, magnet hold if applicable, packaging count, barcode, and carton mark verification against approved golden sample.” For premium retail orders, change Major to 1.5 and Minor to 2.5, then add retailer-specific tests.

Use 100 percent checks when a defect is unsafe, legally sensitive, or expensive to find after distribution. That includes sharp points, loose magnets, detached pin posts, wrong SKU labels, and incorrect country-of-origin marks. AQL is strongest when the design is already engineered correctly and the reference sample is locked; it is not a substitute for choosing the right metal thickness, attachment, plating, and packaging before production begins.

For ZheCraft orders, send the sales channel, target user, packaging method, and top failure concerns with the RFQ. We can translate those risks into inspection checkpoints for enamel pins, brooches, keychains, fridge magnets, challenge coins, patches, and lanyards before pricing is finalized. It is cheaper to quote the right quality level at the start than to discover after production that the product was not designed for the inspection standard.
