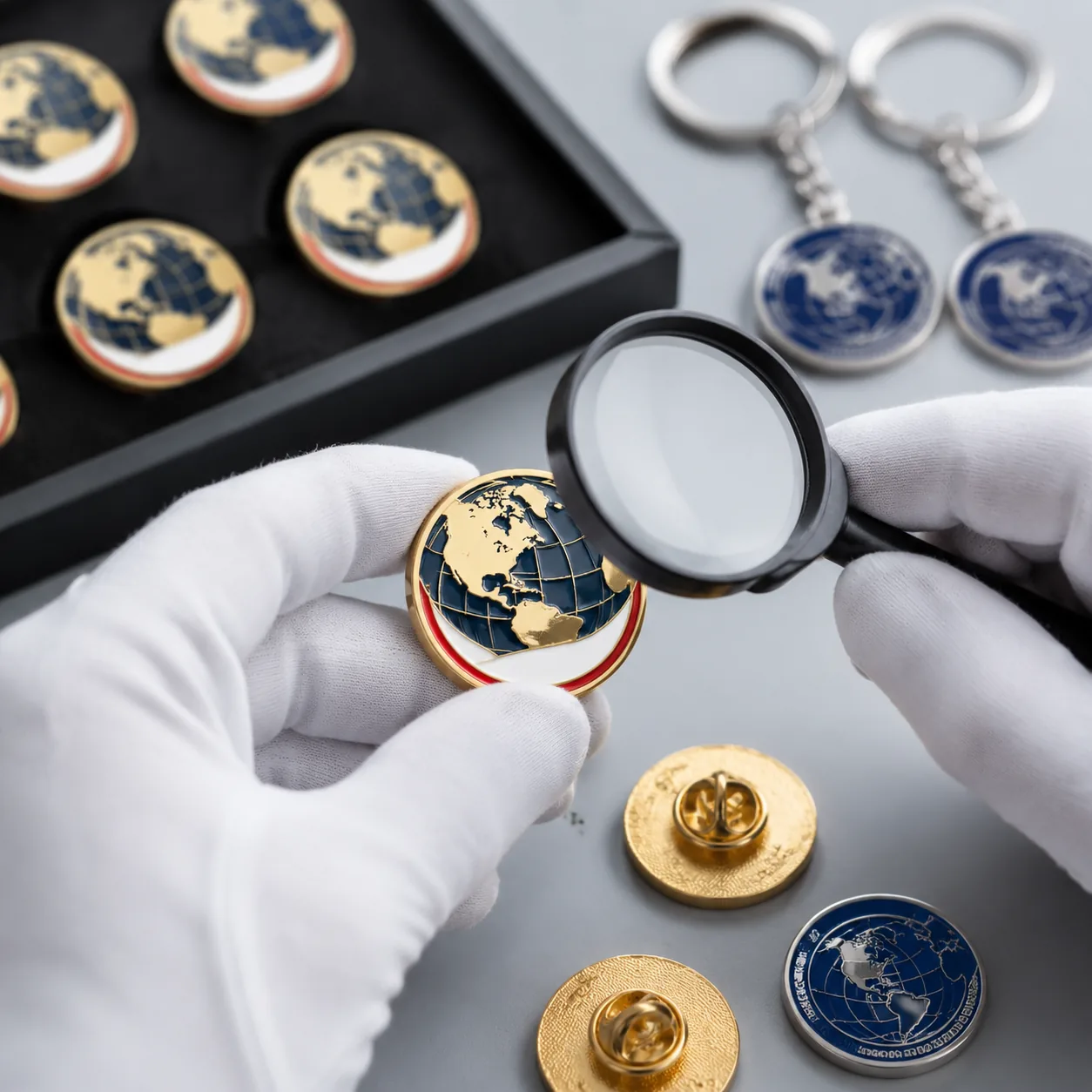

AQL Inspection Plans for Custom Pins, Coins and Keychains

Why Approved Samples Still Ship With Defects

A pre-production sample proves the factory can make one acceptable piece. It does not prove that 5,000 or 20,000 pieces were stamped, plated, filled, assembled and packed consistently. Custom metal promotional products often fail in small ways that are easy to miss during a casual carton check: bent pin posts, thin flash plating, mixed clutches, enamel dust under epoxy, loose jump rings, carton count shortages or backing cards loaded upside down.

AQL inspection gives the buyer and factory a shared release gate. It defines how many pieces are checked, which defects are critical, which measurements are taken, what tools are used and when the shipment is accepted, rejected or sorted. For enamel pins, challenge coins, keychains, brooches and metal badges, ANSI/ASQ Z1.4 or ISO 2859-1 sampling is the common reference, usually with General Inspection Level II under normal severity for final random inspection.

This inspection plan should be agreed before mass production, not after cartons are sealed. At minimum, the file should include the approved artwork revision, dieline, Pantone references, golden sample photos, packing layout, AQL table and defect list. If the order is for a fixed event date, the purchase order should also state the time allowed for inspection, sorting and reinspection because a failed lot can add 2 to 7 working days depending on quantity and defect type.

Assign AQL by Defect Risk, Not Habit

AQL means Acceptable Quality Limit. It is a statistical acceptance rule, not a guarantee that every unit is perfect. The main mistake is applying one AQL value to every defect. A missing safety clutch is not equivalent to a 0.15 mm speck on the back of a pin. A wrong QR code is not equivalent to a light scratch on the reverse side of a challenge coin.

For metal promotional products, three defect classes are practical. Critical defects use AQL 0.0 because they create safety, legal or functional risk. Major defects usually use AQL 1.0 or 1.5 because they affect brand presentation, function or customer acceptance. Minor defects normally use AQL 2.5 or 4.0 because they are small cosmetic issues not visible in normal use.

Tighter AQL is not always better. Requiring AQL 0.65 for every cosmetic mark on a low-cost soft enamel pin can add 1 to 3 days of sorting and USD 0.03 to 0.12 per unit, depending on order size, number of colors and finish sensitivity. Strict limits are justified for retail merchandise, licensed brands, museum products, VIP gifts and safety-related campaigns. They may be excessive for one-day event giveaways where the commercial priority is usable quantity by a fixed deadline.

Defect class	Recommended AQL	Concrete examples	Release action
Critical	0.0	Sharp burr over 0.10 mm on touch area; exposed pin tip; magnet detached by hand; missing child-safety warning where required; lead or nickel test failure against agreed market rule	Reject lot or 100 percent sort before shipment
Major	1.0 or 1.5	Wrong Pantone beyond approved tolerance; bent post; plating blister; exposed base metal on front; unreadable QR code; missing logo detail; wrong attachment; shortage in packed quantity	Reject, rework or sort affected lot
Minor	2.5 or 4.0	Dust under epoxy below agreed size; light hairline scratch on back; small enamel underfill outside logo area; slight polybag wrinkle; small carton mark smudge with readable data	Accept if within AQL limit

Set Lot Size, Sampling Level and Acceptance Numbers

The lot size is the number of finished units presented for inspection at one time. A 20,000-piece order should not automatically be treated as one uniform lot if it was produced in separate plating batches, filled over several days or packed by different teams. Split-lot inspection is safer when process conditions changed, especially for gold plating, black nickel, glitter enamel, epoxy doming or mixed attachments.

General Inspection Level II is the default for most B2B promotional orders because it balances confidence and inspection cost. General Level III increases the sample size and is suitable for retail programs, licensed merchandise, government campaigns or orders where replacement after an event is impossible. Special Inspection Level S-2 or S-3 is useful for slower or destructive checks such as pull testing, tape adhesion, salt spray, abrasion or repeated clasp cycling.

For example, a 5,000-piece enamel pin order under General Level II normally uses code letter L and a visual sample of 200 pieces. If the major-defect AQL is 1.5, the typical acceptance number is 7 major defects and the rejection number is 8 in that 200-piece sample. The buyer does not need to memorize the full table, but the PO should state the inspection standard, lot definition, level and AQL limits so the release decision is not negotiated after defects are found.

Lot quantity	Visual sample at General Level II	Functional sample guide	When to tighten sampling
500 to 1,200 pcs	80 pcs	13 to 20 pcs	Retail carding, tight color match, child-use clutch, magnet function
1,201 to 3,200 pcs	125 pcs	20 to 32 pcs	Multiple enamel colors, epoxy dome, serial numbers, QR codes
3,201 to 10,000 pcs	200 pcs	32 to 50 pcs	Gold plating, mixed attachments, event-critical delivery, spinner or hinge function
10,001 to 35,000 pcs	315 pcs	50 to 80 pcs	Multiple cartons, multiple shifts, brand program, warehouse distribution

Make Visual Standards Measurable

Inspection fails when the standard says only “good quality,” “clean finish” or “same as sample.” Inspectors need measurable limits for viewing distance, lighting, defect size, location and quantity per piece. A practical visual check for pins, coins and keychains is made at 30 to 40 cm under 600 to 1,000 lux white light, without magnification unless the design includes micro text, laser serial numbers, QR codes or inspection of plating pores.

Front-facing brand areas need tighter limits than backs, edges and hidden zones. A 0.20 mm enamel dot on a backstamp may be minor; the same dot on a mascot’s eye, brand letter or national flag color can be major. Glossy black enamel, mirror gold plating and clear epoxy domes require stricter controls because dust, fingerprints and hairline scratches are more visible than on antique nickel, antique brass or matte enamel.

A workable visual standard may require no plating blisters, no peeling, no exposed base metal on the front, no wrong enamel color, no dust larger than 0.30 mm under epoxy on front surfaces and no more than two specks below 0.20 mm on non-logo background areas. Raised rim dents on challenge coins above 0.25 mm are normally major because they catch light and appear as impact damage. For keychains, a jump-ring gap above 0.20 mm after assembly should usually be major because it can release the charm in use.

• Confirm viewing distance of 30 to 40 cm and lighting of 600 to 1,000 lux.
• Separate acceptance rules for front, back, edge, hidden and packing areas.
• State maximum dust, dot, scratch, dent and enamel-void sizes in millimeters.
• Treat defects on faces, logos, QR codes, serial numbers and text as higher risk.
• Keep the approved golden sample and latest artwork at the inspection table.
• Photograph representative defects with a ruler or caliper scale for dispute control.

Verify Dimensions, Plating and Attachment Strength

Dimensional checks should follow the engineering drawing, not the catalog name. For die-struck zinc alloy, iron or brass pins up to 50 mm, a common length and width tolerance is ±0.20 mm; larger badges or irregular outlines often use ±0.30 mm. Thickness tolerance is typically ±0.15 mm for 1.2 to 2.0 mm pins and ±0.20 mm for 3.0 to 4.0 mm challenge coins, unless the design has heavy 3D relief or intentionally uneven antique finishing.

Color also needs a measurable reference. Pantone matching should be checked against the approved chip or drawdown under standard light. For enamel fills, a practical tolerance is often visual match to approved sample under D65 or cool white inspection light, with no color mixing, bleeding or incomplete fill in logo areas. For printed pins or UV-printed coins, registration tolerance should be stated, commonly ±0.20 mm for small graphics and tighter for QR codes that must scan at 10 to 15 cm.

Plating thickness is often hidden in pricing. Standard nickel, gold, black nickel, copper or brass-look promotional plating is commonly 3 to 5 microns total coating thickness, depending on base metal and finish. Keychains and coins that rub against keys or pockets should specify 5 to 8 microns or a protective clear lacquer where feasible. Flash plating below 2 microns may look acceptable at shipment but can tarnish, fade or expose base metal quickly. If corrosion resistance matters, request process records, XRF spot checks or a pre-production salt spray target such as 24 hours for basic promotional use and 48 hours or more for higher-wear programs.

Attachments require physical testing. Standard pin posts should be straight within 3 degrees of vertical and pass a 5 kgf pull for 10 seconds unless the product is very small. Keychain jump rings should resist 8 to 12 kgf depending on wire diameter, and the ring gap after assembly should remain below 0.20 mm. Lobster clasps should spring closed without sticking after repeated operation. Adhesive magnets should be tested after at least 24 hours of curing, not immediately after gluing, because early bond strength can be misleading.

Check item	Tool or method	Typical target	Defect class if failed
Width and height	Digital caliper	±0.20 mm up to 50 mm; ±0.30 mm above 50 mm	Major if shape or fit changes
Metal thickness	Digital caliper	±0.15 mm for pins; ±0.20 mm for coins	Major if weight or durability is affected
Post angle	Angle gauge or go/no-go jig	Within 3 degrees from vertical	Major
Pin post pull	Pull gauge	5 kgf for 10 seconds	Critical or major
Keychain ring pull	Pull gauge	8 to 12 kgf, based on hardware size	Major
Plating thickness	XRF or process record	3 to 5 microns standard; 5 to 8 microns for higher wear	Major if below agreed spec
Printed registration	Scale loupe or overlay	Usually within ±0.20 mm	Major for logos, QR codes or text

Control Packing, Counts and Carton Release

Many complaints are packing failures rather than manufacturing failures. Pins scratch when two metal faces touch in one polybag. Coins dent when they move inside loose inner boxes. Keychains puncture backing cards when the slot is too close to the card edge. Carton shortages disrupt event kits even when the product itself is acceptable.

Packing inspection should verify unit packaging, inner-box quantity, carton quantity, SKU labels, barcode readability, desiccant use where needed and export carton strength. For small metal items, common export cartons are 5-ply corrugated with gross weight kept below 15 to 18 kg to reduce drop damage and warehouse handling claims. Unit packing should prevent metal-to-metal contact. Pins on backing cards should lock without bending the card, and the clutch should not press through the polybag.

Count accuracy deserves a strict rule. A shortage of 50 pieces in a 5,000-piece order may be more damaging than several minor cosmetic marks if the buyer is building event kits. For multi-item sets, inspect complete sets rather than only individual components, because the end user receives one finished package. Cartons should be pulled from the top, middle and bottom of the pallet or stack so the inspection does not only see the easiest cartons to access.

• Check carton marks against PO number, SKU, quantity, destination and country of origin.
• Open cartons from different pallet positions, not only the top layer.
• Verify unit count, inner-box count, carton count and gross weight.
• Confirm metal items cannot rub directly against each other in transit.
• Check backing cards for tearing, bent corners, wrong orientation and barcode readability.
• Photograph one complete packed carton with all layers visible before resealing.

Use Functional Tests That Match Real Use

Final inspection should include practical stress checks based on how the product will be used. A keychain spends its life with keys and coins, so connector strength and plating wear matter more than microscopic reverse-side scratches. A brooch used on wool coats needs a secure catch, controlled pin sharpness and anti-sag performance. A fridge magnet needs holding force on painted steel, not just a strong magnet measured in open air.

For enamel pins and badges, useful checks include post pull, clutch fit, enamel adhesion tape test and epoxy cure condition. A common tape check uses 3M 600 or equivalent pressure-sensitive tape applied firmly and peeled back at about 180 degrees; any lifted enamel, print or plating is major. For keychains, inspect jump-ring closure, split-ring memory, clasp spring return, swivel rotation and charm security. For challenge coins, check rim impact marks, capsule fit, pouch fit and color-fill adhesion. These tests are often sampled at Special Level S-2 or S-3 because they take longer and may damage tested pieces.

Do not save every critical test until the final inspection. If nickel compliance, lead content, salt spray or abrasion resistance matters, run pre-production or in-process checks before 20,000 finished pieces are packed. A 24-hour nickel screening, XRF material check or salt spray pre-check on plated blanks gives the factory time to correct the process. Finding a systemic plating failure after final packing usually means sorting will not solve the root problem.

Product	Functional checks	Sample size guide	Rejectable failure
Enamel pin	Post pull, clutch fit, tape adhesion, epoxy cure	20 to 32 pcs	Detached post, unsafe point, loose clutch or lifted enamel
Keychain	Ring pull, clasp spring, swivel rotation, plating rub	20 to 50 pcs	Open ring, stuck clasp, detached charm or heavy rub-through
Fridge magnet	Magnet pull, adhesive bond, sliding check on painted steel	13 to 32 pcs	Detached magnet or inability to hold agreed load
Challenge coin	Rim check, color-fill tape test, pouch or capsule fit	20 to 32 pcs	Loose enamel, dented rim or packaging that damages finish
Brooch	Hinge and catch function, sag check, fabric puncture check	13 to 32 pcs	Open catch, sharp burr or unstable wear position

Write the PO Clause Before Production Starts

The inspection clause should be short enough for a purchase order but specific enough for the factory and third-party inspector to enforce. It should name the product, artwork version, golden sample reference, lot definition, inspection standard, sampling level, AQL limits, defect classification, measurement tolerances, packing rules, test methods and photo requirements. If an order includes multiple SKUs, state whether each SKU is inspected separately or pooled; separate SKU inspection is safer but takes more time.

A practical clause is: “Final random inspection to ANSI/ASQ Z1.4, General Inspection Level II, normal severity. Critical defects AQL 0.0, major defects AQL 1.5, minor defects AQL 4.0. Dimensions per approved drawing with ±0.20 mm tolerance unless otherwise stated. Pin post pull 5 kgf for 10 seconds. Plating must be free from exposed base metal, blistering and peeling. Packing count must match PO with zero shortage allowed. Buyer-approved golden sample and packing photo are inspection references.”

The clause should also define cost responsibility. A common arrangement is that the buyer pays for the first scheduled inspection, while the factory pays for reinspection if the lot fails because of factory-responsible defects. If a problem comes from buyer-approved artwork risk, late specification changes or an unrealistic tolerance request, rework scope and cost should be agreed before sorting starts.

For planning, allow 1 to 2 days for inspection preparation and execution on a single-SKU order, and 2 to 4 days for mixed SKUs or set packing. If 100 percent sorting is required after failure, add 1 to 5 working days for simple cosmetic sorting and longer if rework involves replating, enamel refill, attachment replacement or full repacking.

Commercial terms should reflect the inspection standard. Practical MOQ tiers for Yiwu-style custom metal promos are 100 to 300 pieces for samples or small runs, 500 to 1,000 pieces for standard promotional pricing and 3,000 pieces or more for better FOB efficiency. Typical FOB ranges are USD 0.35 to 1.20 for standard soft enamel pins, USD 0.70 to 2.50 for keychains and USD 1.20 to 4.50 for challenge coins, excluding premium packaging, licensed testing, rush production or heavy 3D molds. Sharing artwork, quantity, target market, packing method and AQL requirements at quotation stage lets ZheCraft price both the product and the quality-control workload instead of debating inspection limits at shipment.
