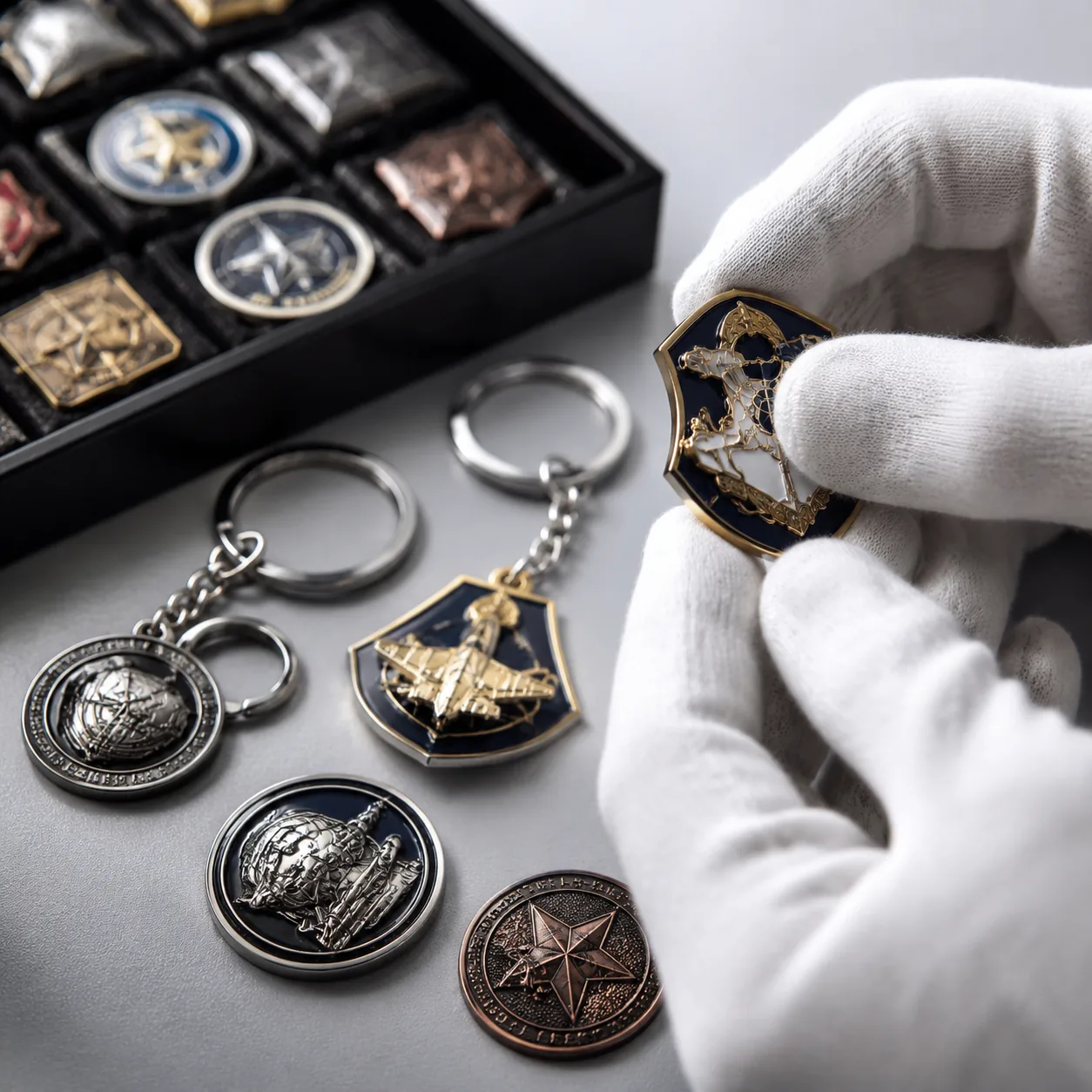

AQL Inspection Plans for Custom Metal Giveaways

Why a Clean Carton Can Still Hide a Failed Promotion

The most expensive quality failure in custom metal giveaways usually appears after delivery. Cartons look intact, export marks are correct, and the packing list matches the purchase order, but the event team finds bent pin posts, weak magnets, scratched plating, mismatched enamel, loose split rings, or backing cards mixed between designs. At that point, replacing 3,000 to 20,000 custom pieces is no longer a factory discussion. It is a missed event date, a distributor complaint, or a retail return problem.

AQL inspection does not mean zero defects. It defines how many critical, major, and minor defects are allowed in a statistically selected sample before the lot is accepted or rejected. For custom metal products, that distinction matters because a 25 mm enamel pin, a 50 mm challenge coin, a 70 mm bottle opener keychain, and a 45 g fridge magnet fail in different ways. The inspection plan must match the product structure, decoration method, attachment, packaging, and end use.

For B2B promotional orders from 500 to 50,000 pieces, ZheCraft normally builds final inspection against four reference points: approved artwork, signed pre-production sample, sealed Pantone or color standard, and packing specification. A practical plan states the inspection level, AQL limits, defect definitions, tolerances, function tests, carton sampling method, and shipment hold rules before production starts.

Select Inspection Level Before Setting AQL

Buyers often write “AQL 2.5” in a purchase order and assume the factory understands the requirement. That is incomplete. Under ISO 2859-1, the inspection level determines the sample size, while the AQL number determines the acceptable defect count inside that sample. If the level is missing, one inspector may check 50 pieces while another checks 200 pieces for the same shipment.

For most custom metal giveaways, use General Inspection Level II. It gives a reasonable balance between inspection cost and detection power for visual, dimensional, assembly, and packing defects. For a 3,201 to 10,000 piece lot, Level II normally means a 200-piece sample under single normal sampling. For 10,001 to 35,000 pieces, the sample is typically 315 pieces. These quantities are large enough to catch repeated enamel, plating, attachment, and packing issues without turning inspection into 100 percent sorting.

General Level I can be used for low-risk repeat orders when tooling, plating, enamel colors, hardware, packaging, and factory line are unchanged and the previous lot passed without major findings. Special Inspection Levels S-2 or S-3 should not be used for full appearance inspection because the sample is too small. They are appropriate for time-consuming or destructive checks such as pull testing, torque testing, tape adhesion, salt spray sample selection, or magnet hold testing.

Lot quantity	Recommended level	Typical sample size	Practical use
500 to 1,200 pcs	General Level II	80 pcs	First orders, event deadlines, retail cards, mixed colors
1,201 to 3,200 pcs	General Level II	125 pcs	Most custom pins, coins, keychains, magnets
3,201 to 10,000 pcs	General Level II	200 pcs	Distributor orders or multi-carton campaigns
10,001 to 35,000 pcs	General Level II	315 pcs	Large campaign lots with several packing batches
Repeat stable order	General Level I	50 to 200 pcs by lot size	Only when design, tooling, finish, hardware, and packing are unchanged
Function or destructive tests	Special S-2 or S-3	8 to 32 pcs	Pull force, torque, tape adhesion, magnet hold, salt spray samples

Define Critical, Major, and Minor Defects Clearly

AQL works only when defects are classified before inspection. Critical defects affect safety, legality, or product identity and should normally be set at AQL 0. Major defects affect function, brand appearance, resale value, or shipment usability. Minor defects are small cosmetic variations that do not affect normal use and are not obvious at the agreed viewing distance.

For enamel pins and brooches, critical defects include sharp burrs that can cut skin, detached magnets, broken pin stems, wrong restricted-material labeling, or a wrong product mixed into the shipment. Major defects include missing enamel, wrong Pantone color on a logo area, bent posts, loose clutches, plating peel, visible front-face scratches, incorrect backstamp, wrong backing card, or quantity shortage. Minor defects may include a backside hairline scratch under 2 mm, a tiny polishing mark on a non-visible area, or slight enamel dust trapped at an inner corner when it is not visible at normal viewing distance.

For challenge coins and keychains, function should be judged more strictly than decoration. A split ring that opens under light pull, a bottle opener that bends during use, or a spinner coin that jams is a major defect and may be critical if it creates a sharp edge. A 0.4 mm plating dot on a coin rim may be minor for a giveaway coin, but the same mark on the front logo face of a museum retail coin should be major.

• Set critical defects at AQL 0: sharp edges, unsafe assembly, detached magnet, broken pin stem, wrong item, missing mandatory warning or compliance label.
• Use major AQL 1.0 or 1.5 for licensing, museum, airline, automotive, retail, VIP, or brand-controlled programs.
• Use major AQL 2.5 for standard promotional giveaways where small cosmetic variation is acceptable.
• Use minor AQL 4.0 for low unit-value goods not sold individually, provided the brand face remains acceptable.
• Define viewing conditions: 30 cm distance, 600 to 800 lux light, normal unaided vision, no magnification except QR codes, barcodes, or micro text.
• Record defect photos by class, carton number, SKU, and quantity so rework decisions are based on evidence, not opinion.

Use Measurable Tolerances, Not Vague Appearance Notes

An inspection sheet should not say only “40 mm gold pin, good quality.” It should state measurable tolerances for size, thickness, weight, color, plating, attachment position, and packing. Tolerances must reflect the manufacturing process. Die-struck iron, zinc alloy casting, brass stamping, photo-etched badges, and soft enamel filling do not hold the same limits.

For enamel pins under 50 mm, a practical overall size tolerance is ±0.3 mm. Larger badges can usually be controlled within ±0.5 mm. Body thickness for 1.2 to 2.0 mm pins is commonly ±0.2 mm. Pin post position should be within ±1.0 mm of the approved drawing, or ±0.5 mm when the design must hang level or prevent rotation. Enamel line width below 0.3 mm should be treated as high risk because metal lines may fill, blur, or break during polishing.

For challenge coins, specify diameter, thickness, weight, plating, edge style, and fit. A 38 to 50 mm coin can normally hold ±0.3 mm diameter; 55 to 70 mm coins usually require ±0.5 mm. Thickness tolerance is typically ±0.2 mm for 2.5 to 4.0 mm coins. Weight tolerance of ±5 percent is practical for normal orders, but reorder series may need ±3 percent so the new coin does not feel different from previous issues.

Decorative plating on zinc alloy, iron, or brass giveaways is commonly specified at 3 to 8 microns total deposit. Premium brass coins, retail keychains, or high-handling items may use 5 to 10 microns depending on finish. If corrosion resistance matters, add a defined test such as 24 to 48 hours neutral salt spray for nickel, gold-tone, or antique finishes, or a sweat resistance test for wearable badges.

Inspection item	Practical tolerance or spec	Major defect trigger
Pin or badge size	±0.3 mm under 50 mm; ±0.5 mm above 50 mm	Outside tolerance or visibly mismatched to approved sample
Coin diameter	±0.3 mm for 38 to 50 mm; ±0.5 mm for 55 to 70 mm	Does not fit capsule, tray, box insert, or set layout
Body thickness	±0.2 mm for most 1.2 to 4.0 mm metal items	Feels flimsy, bends, or mismatches reorder sample
Weight	±5% standard; ±3% for matched reorder series	Different hand feel or package weight outside spec
Enamel color	Match approved sample or Pantone chip under 600 to 800 lux	Wrong logo shade or obvious lot-to-lot color shift
Plating thickness	3 to 8 microns decorative; 5 to 10 microns premium handling spec	Bare metal, peel, burn mark, blister, or below agreed thickness
Attachment position	±1.0 mm standard; ±0.5 mm anti-rotation layouts	Item hangs crooked, rotates, or cannot be worn as intended
Magnet placement	Centered within ±1.0 mm unless shaped magnet is specified	Weak hold, exposed glue, rocking, or unstable fridge contact

Add Function Tests for Hardware and Adhesion

Visual inspection alone misses many failures. A pin can look perfect until the post separates from the body. A keychain can pass appearance checks but fail when the jump ring opens. A fridge magnet may look clean but slide down a painted steel cabinet. Function tests should be written into the same inspection plan as visual checks, with units, duration, and pass criteria.

For standard enamel pins using 8 to 10 mm posts, require no detachment under a 3 kgf straight pull for 10 seconds. After the pull, there should be no solder crack, tilted post, or plating separation around the weld point. For rubber or butterfly clutches, test five attach-remove cycles and confirm the clutch still grips the post without slipping under light hand pull.

For keychains, test the split ring, jump ring, connector chain, swivel, and clasp. A 25 to 30 mm split ring should resist permanent opening under a 5 kgf static pull for 10 seconds. Heavy coin keychains, bottle opener keychains, and multi-charm assemblies should be tested at 8 kgf. If the item includes a bottle opener, test at least 10 samples on standard capped bottles; deformation, sharp burrs, plating peel at the opener edge, or failure to open the bottle is a major defect.

For fridge magnets, test on a clean painted steel plate, not stainless steel or a thin display rack. A 50 mm zinc alloy magnet should not slide under its own weight for 24 hours. Decorative magnets above 35 g should have the magnet size and grade confirmed before tooling, commonly 12 to 20 mm ferrite or neodymium depending on item weight, child-safety requirements, and destination regulations.

• Pin post pull test: 3 kgf for 10 seconds, no detachment, solder crack, or plating break.
• Clutch cycle test: 5 attach-remove cycles, no loose butterfly clutch, split rubber clutch, or poor grip.
• Keychain pull test: 5 kgf standard; 8 kgf for heavy bottle opener, coin, or multi-charm keychains.
• Magnet hold test: 24 hours on clean painted steel, no sliding under the item’s own weight.
• Tape adhesion test: 3M 600 or equivalent tape, firm rub, 90-degree peel, no logo lift, epoxy lift, or print flaking.
• QR or barcode check: scan 10 samples from different cartons using a phone camera and warehouse scanner when retail data matters.

Sample Across Cartons, SKUs, and Packing Stages

AQL sampling fails when all inspected pieces come from one convenient carton. Custom promo shipments often include multiple SKUs, enamel colors, plating finishes, backing cards, language versions, or retail labels. The inspector must pull samples across cartons and designs, not only from the top layer near the loading door.

For a single-SKU order, sample from at least the square root of the carton count, rounded up. If the shipment has 36 cartons, pull from at least 6 cartons. For mixed-SKU orders, each design must receive enough checking to catch design-specific errors such as wrong enamel, wrong backstamp, mixed cards, missing serial numbers, or incorrect polybag labels. A 10,000-piece order with 20 designs cannot be treated as one homogeneous lot unless the body, plating, attachment, and packaging are identical and only printed graphics differ.

Product inspection and packing inspection should be recorded separately. A correct pin on the wrong card is still a major defect. A good coin in a crushed capsule may be a packing defect that makes the unit unsellable. For retail-packed goods, inspect product before final sealing when possible, then inspect finished units for card alignment, barcode scan, carton quantity, carton drop damage, and export marks.

Order structure	Sampling approach	Buyer control point
One SKU, 20 cartons	Sample across at least 5 cartons	Use one AQL lot if all cartons are from the same batch
Five SKUs, same body, different enamel	Check each SKU visually; combine function tests only if hardware is identical	Color, backstamp, and card matching must be SKU-specific
Twenty SKUs, 100 pcs each	Use reduced per-SKU checks plus first-article confirmation for every SKU	Do not rely only on total order AQL
Mixed products: pins and keychains	Inspect as separate lots	Different products need different defect classes and tests
Retail packed goods	Inspect product and packing separately	Wrong card, unreadable barcode, or crushed box is major

Know When Final AQL Is Not Enough

Final AQL is a shipment acceptance tool, not a complete process control system. It can identify a bad lot, but it cannot prevent hidden process issues that were built into every piece. High-risk areas such as plating adhesion, enamel curing, magnet bonding, epoxy doming, and mixed-SKU packing should be controlled before final inspection.

Use incoming component control when the risk sits in purchased parts. Magnets, clutches, split rings, lobster clasps, backing cards, epoxy stickers, and retail boxes should be approved before assembly. A magnet grade substitution may not be obvious visually, but it can create weak hold complaints in the field. For magnet products, specify diameter, thickness, material type, and pull expectation before mass production, then keep one approved component sample in the QC file.

Use in-process inspection when the defect becomes expensive to repair later. Enamel color, fill level, logo shape, polishing marks, and plating tone should be checked before goods are carded and bagged. Once 10,000 pins are sealed into retail packs, correcting a wrong enamel shade can require unpacking, sorting, reworking, and repacking the entire lot. ZheCraft commonly checks tooling trial pieces, first enamel fill, first plating output, and first packed carton as separate gates because each stage creates different defects.

• Do not rely only on final AQL for new tooling with enamel lines below 0.3 mm or dense recessed text.
• Do not rely only on final AQL for finishes that must pass salt spray, sweat resistance, or tape adhesion tests.
• Do not rely only on final AQL for orders with more than 10 similar SKUs and similar backing cards.
• Do not rely only on final AQL when retail packaging cannot be opened without damage.
• Do not set AQL 0 for all cosmetic defects; it creates disputes over harmless variation and hides the real safety risks.
• Do not approve bulk production until the signed sample, color standard, and packing layout are frozen.

Put the Plan in the Purchase Order Before Production

The inspection plan should be short enough for the factory, merchandiser, and inspector to use, but specific enough to remove judgment gaps. Put the core requirements in the purchase order or production specification, not only in an email thread. Attach artwork, Pantone references, golden sample photos, packaging dielines, carton marks, and the defect classification sheet before mass production starts.

A factory-ready clause can read: “Final inspection to ISO 2859-1, single normal sampling, General Inspection Level II. Critical defects AQL 0, major defects AQL 1.5, minor defects AQL 4.0. Inspection against approved pre-production sample, artwork file, Pantone standard, and packing specification. Samples to be pulled across cartons and SKUs. Shipment holds if any critical defect is found or if major/minor defect counts exceed acceptance limits.”

Then add item-specific details. For a standard promotional enamel pin, specify 1.5 mm iron or zinc alloy body, ±0.3 mm size tolerance, decorative plating 3 to 8 microns, enamel matched under 600 to 800 lux, pin post pull test at 3 kgf for 10 seconds, 100 pieces per inner polybag or backing card quantity as agreed, and carton labels matching SKU and quantity. For a premium challenge coin, specify alloy, diameter, thickness, edge type, plating finish, capsule or box fit, weight tolerance, and any salt spray or abrasion requirement.

Before approving shipment, ask the supplier for the planned inspection level, AQL numbers, defect classification sheet, and blank report format. For first orders, use Level II with critical AQL 0, major AQL 1.5 or 2.5, and minor AQL 4.0. Require photos of defects grouped by class, carton, and SKU. If you are sourcing pins, coins, keychains, or magnets from ZheCraft, send artwork, quantity, packing method, destination date, and compliance limits at RFQ stage so tolerances, FOB pricing assumptions, MOQ tiers, lead time, and inspection scope are aligned before tooling begins.
