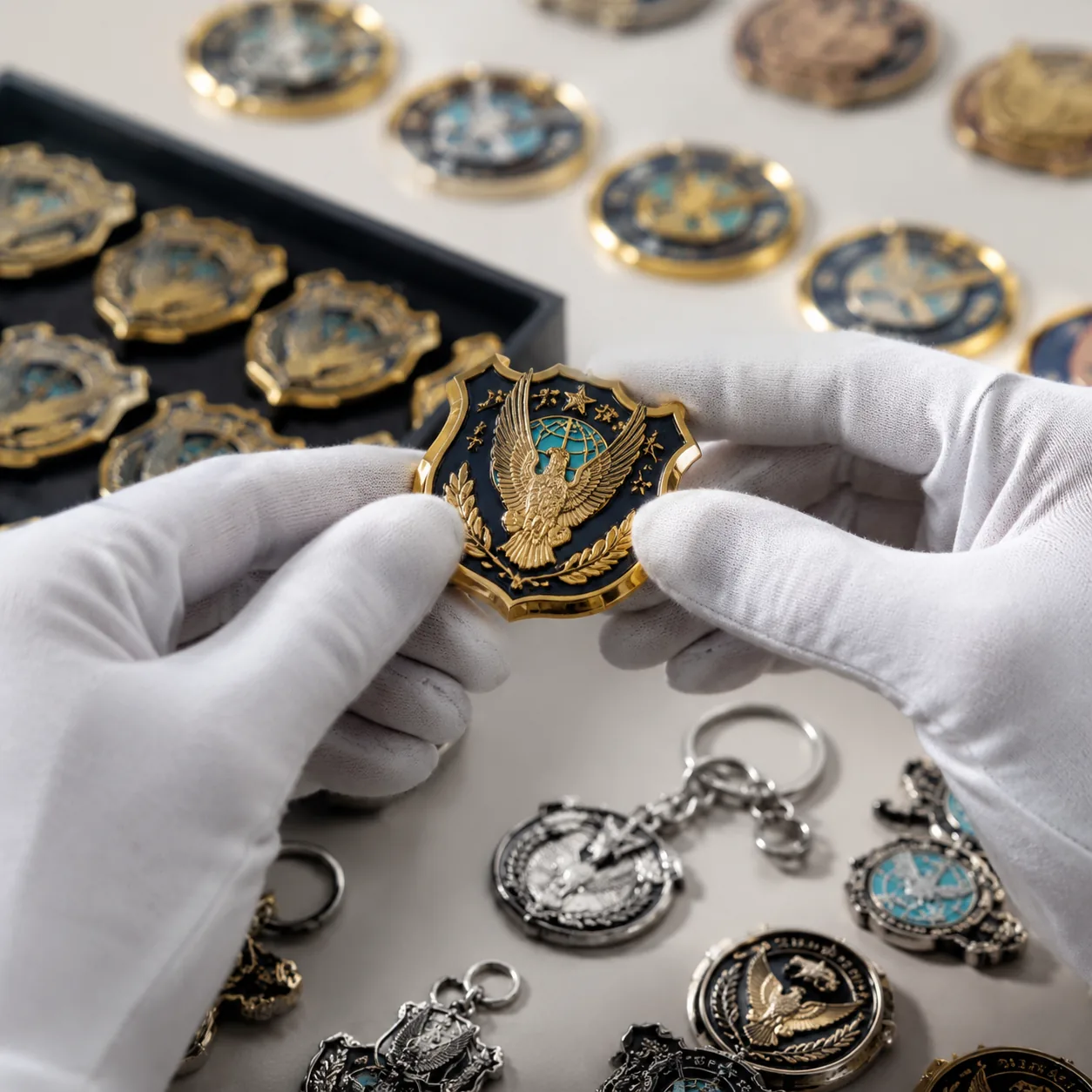

AQL Inspection for Custom Pins, Coins and Keychains

Why Factory Photos Are Not Final Inspection

A procurement team may receive 10 clean factory photos, approve shipment, and then find that 6 percent of the delivered pins have weak clutches, scratched plating, enamel overflow or mixed designs. In many cases the factory did not hide the issue; the buyer never defined the sample size, defect classes, test method or maximum acceptable failure rate. For custom metal promotional products, photo approval is only evidence that some pieces looked acceptable under the factory's lighting. It is not a statistically controlled inspection.

AQL, or Acceptable Quality Limit, gives buyer and supplier a sampling plan before mass production starts. It does not mean zero defects. It defines how many pieces are randomly checked from the packed shipment and how many critical, major or minor defects are allowed before the lot fails. For example, a 5,000 piece soft enamel pin order inspected to ANSI/ASQ Z1.4 general inspection level II uses sample size code L, which means 200 pieces are checked for visual and dimensional inspection. With AQL 0 for critical defects, 1.5 for major defects and 4.0 for minor defects, the lot fails if the inspector finds 1 critical defect, 8 or more major defects, or 15 or more minor defects in that 200 piece sample.

At ZheCraft, AQL-style inspection is used for enamel pins, brooches, keychains, challenge coins, fridge magnets, patches and lanyards when buyers need shipment-level QC documents. The form is useful, but the main value is alignment before die striking, casting, plating, enamel filling, polishing and assembly begin. AQL works best when the purchase order already states what counts as critical, major and minor.

Select AQL Levels by Commercial Risk

General inspection level II is the practical default for most promotional pins, coins and keychains because it balances inspection cost and detection probability. Level I is only suitable for very low-risk giveaways where minor cosmetic variation has limited commercial impact, such as a 20,000 piece event pin order at FOB USD 0.38 to 0.65 each. Level III is better for paid retail goods, fundraising items, membership badges and brand merchandise where returns are expensive, such as hard enamel brooches at FOB USD 1.20 to 3.80 or challenge coins at FOB USD 2.20 to 6.50.

Use AQL 0 for critical defects. A single sharp burr, exposed needle point, detached magnet, broken clasp creating a swallowing risk, rust contamination or wrong safety warning should fail the shipment. Use AQL 1.0 or 1.5 for major defects affecting function, branding or sellability. Use AQL 2.5 or 4.0 for minor defects, such as small reverse-side polishing haze, provided the defect is not visible on the logo face at 30 cm under neutral 600 to 800 lux light.

Order type	Typical MOQ	Recommended level	Critical AQL	Major AQL	Minor AQL
Event soft enamel pins	500 to 20,000 pcs	General II	0	2.5	4.0
Retail hard enamel pins or brooches	300 to 5,000 pcs	General II or III	0	1.0 or 1.5	2.5
Challenge coins	100 to 3,000 pcs	General II	0	1.5	2.5
Keychains with rings, swivels or bottle openers	500 to 10,000 pcs	General II or III	0	1.0	2.5
Child-facing magnets, pins or charms	500 pcs and above	General III plus safety tests	0	1.0	2.5

Define Defect Classes Before Production

Most AQL disputes are not caused by the sample size. They are caused by unclear defect classification. A 0.3 mm enamel speck on the back of a lapel pin may be minor. The same 0.3 mm black speck on a white logo face may be major because it changes the visible brand mark. The inspection standard should separate safety, function, front-side appearance, reverse-side appearance, dimensional accuracy and packing errors.

Critical defects include sharp edges that can cut skin, exposed pin needles through polybags or backing cards, loose or detachable magnets, rust, mixed customer artwork, wrong safety warnings, missing country-of-origin marking when specified, and any broken glass-like epoxy. Major defects include wrong Pantone color outside agreed tolerance, plating peel, exposed base metal, missing enamel, bent posts more than 5 degrees from vertical, clutches that fall off during handling, unreadable QR codes, wrong attachment type, short quantity, mixed SKUs or wrong carton labels. Minor defects include slight reverse-side polishing marks, small shade variation on non-logo metal, backstamp depth variation that remains readable, and tiny dust points outside the primary logo area.

• Classify all sharp points, exposed needles, loose magnets, broken epoxy and rust as critical with AQL 0.
• Classify front-face logo defects as major when visible at 30 cm under 600 to 800 lux neutral light.
• Classify reverse-side cosmetic marks as minor unless they affect branding, corrosion resistance or backstamp readability.
• Classify wrong plating finish, wrong attachment, wrong packing ratio or mixed design as major even if workmanship is otherwise acceptable.
• Classify carton label errors as major when they can cause distributor receiving errors, FBA routing failure or incorrect SKU allocation.

Set Measurable Tolerances and Test Methods

A final inspector cannot enforce a specification that was never written. For enamel pins and brooches, set outline tolerance at plus or minus 0.20 mm for items under 35 mm and plus or minus 0.30 mm for larger badges. Pin post position should usually be within plus or minus 1.0 mm of the approved drawing. Post perpendicularity should be within 5 degrees unless a brooch bar, safety pin or tie-tack attachment requires a different angle.

Plating and coating also need numerical limits. Standard decorative nickel, gold, black nickel, brass, copper or rose gold plating on iron or zinc alloy should normally be 3 to 5 microns. For heavier wear, upgraded plating should be 5 to 8 microns, with 24 hour neutral salt spray as a common benchmark for improved corrosion resistance. Epoxy domes should normally be 0.8 to 1.5 mm above the metal face, with no bubbles over 0.3 mm on the logo area and no overflow beyond the metal border.

Functional limits should be written in the same way. Butterfly clutch retention for most lapel pins should be 2.0 to 5.0 kgf. Below 2.0 kgf, clutches may detach during wear; above 5.0 kgf, users may bend the post while removing the clutch. Split rings for keychains should resist 8 to 12 kgf pull depending on ring diameter and wire thickness. Swivel hooks should rotate freely after a 500-cycle hand rotation check. Fridge magnet pull force is commonly 300 to 800 gf, while heavier name badge magnets often require 800 to 1,500 gf depending on badge weight.

Inspection item	Acceptable limit	Major defect example	Minor defect example
Outline size	±0.20 mm under 35 mm; ±0.30 mm above 35 mm	Wrong size by 0.8 mm	Slight edge rounding within tolerance
Plating thickness	3 to 5 µm standard; 5 to 8 µm upgraded	Peeling, blistering or exposed base metal	Small shade variation on reverse side
Enamel fill	No missing color; clean separation lines	Wrong Pantone or missing enamel	Dust point under 0.2 mm outside logo
Pin post angle	Within 5 degrees from vertical	Bent post preventing clutch fit	Slight lean that still locks securely
Epoxy dome	0.8 to 1.5 mm; no edge overflow	Bubble over 0.3 mm on logo	Small edge bubble under 0.3 mm
Carton weight	Usually under 15 kg gross for manual handling	Short count or wrong SKU label	Light carton scuff without product damage

Build a Shipment Inspection Checklist

A useful checklist follows the physical product: quantity, artwork, dimensions, surface, function, packing and carton marks. For a 3,000 piece hard enamel pin order, general inspection level II normally requires a 200 piece sample for visual and dimensional checks. Destructive or semi-destructive tests, such as clutch pull, tape adhesion, bend testing or plating thickness measurement, are usually performed on a smaller special sample, often 8 to 13 pieces. The purchase order should state whether tested pieces must be replaced or can ship as non-sale samples.

Do not overload the checklist with factory process controls that cannot be verified at final inspection. Final AQL inspection should catch problems that matter after delivery: safety, brand appearance, function, quantity, packing accuracy and resale value. Process controls such as die maintenance, plating bath chemistry, enamel curing and polishing sequence should be handled during production, not discovered after all cartons are sealed.

• Quantity: verify total pieces, inner bag counts, carton counts and assorted design ratios against the purchase order.
• Artwork: compare front face, backstamp, Pantone references, logo position, text spelling and QR code readability against the approved sample.
• Dimensions: measure width, height, thickness, coin diameter, post location, keyring diameter and attachment position with calibrated calipers.
• Surface: check plating color, enamel fill, scratches, pits, epoxy bubbles, burrs, oxidation, glue residue and polishing haze.
• Function: test clutch fit, brooch clasp closure, magnet pull, split ring opening, swivel rotation, bottle opener edge and moving part travel.
• Packing: check polybag size, backing card orientation, barcode, warning label, moisture protection, carton label and export carton strength.

Plan MOQ, Lead Time and Inspection Cost

AQL inspection affects the schedule, not just the QC report. For custom metal items, normal production after sample approval is usually 12 to 18 days for 500 to 3,000 enamel pins, 15 to 22 days for keychains with multiple hardware parts, and 18 to 28 days for challenge coins, cutout coins or mixed promotional sets. Add 1 to 2 days for final inspection and 2 to 5 days for limited rework such as cleaning, repacking, clutch replacement or label correction.

If failure involves plating, enamel color, missing die details, wrong mold, incorrect casting or mixed artwork, rework can take 7 to 15 days and may require full remanufacture. Final inspection should therefore never be booked on the same day as courier pickup, vessel cut-off or distributor delivery deadline. A safer export plan is sample approval on day 0, mass production on days 1 to 18, internal QC on days 19 to 20, buyer or third-party inspection on day 21, and shipment release on day 22 or later.

MOQ changes the inspection economics. On a 100 piece coin order at FOB USD 3.80 each, a third-party inspection costing USD 180 to 300 may exceed the value of the risk unless the order is retail-critical. On a 5,000 piece keychain order at FOB USD 0.75 to 1.40 each, the same inspection cost is usually justified because one weak ring or wrong attachment can create hundreds of complaints. ZheCraft can provide factory QC photos, measurements and packing records for small runs, then support buyer-appointed AQL inspection for larger or higher-risk shipments.

Know Where AQL Stops Working

AQL is a final random sampling tool. It cannot replace engineering controls for known safety, material or durability risks. If the item includes magnetic components, sharp pin mechanisms, skin-contact plating, child-facing packaging, food-adjacent use or outdoor exposure, add targeted tests before mass production. Nickel-free claims, for example, require material control and suitable plating specifications; they cannot be verified by looking at packed goods.

AQL also has limited value for defects that appear after use. Tarnish, weak plating adhesion, epoxy yellowing, split ring fatigue and magnet glue failure may pass a final visual inspection but fail after weeks of handling. For these risks, add process and reliability checks such as 24 hour neutral salt spray for upgraded plating, cross-hatch tape testing for coating adhesion, 500 to 1,000 cycle movement checks for swivels or hinges, and 48 hour room-temperature cure confirmation for glued magnets.

Avoid using unrealistically strict AQL numbers as a substitute for a better specification. AQL 0 for every cosmetic mark on a soft enamel event pin at FOB USD 0.42 is not commercially realistic. It will increase price, extend sorting time or create supplier disputes. Apply the tightest limits to defects that affect safety, legal compliance, brand value and function.

Prepare a One-Page AQL Appendix

Before issuing the next purchase order, create a one-page AQL appendix instead of relying on scattered email comments. Include drawing revision, approved sample date, inspection level, AQL levels, defect classification, key tolerances, functional tests, packing method, carton marking requirements and responsibility for reinspection cost after failure. The same appendix should travel with the RFQ, proforma invoice, purchase order and final inspection booking.

For a standard custom pin, coin or keychain order, start with general inspection level II, AQL 0 critical, 1.5 major and 4.0 minor. Tighten to major AQL 1.0 for retail, fundraising, membership or paid merchandise. Add special checks for clutch pull force, magnet strength, plating thickness, epoxy quality, carton count and barcode accuracy wherever the order has real failure history or downstream receiving requirements.

If comparing suppliers, ask each factory to mark up the AQL appendix before quoting. A capable factory will confirm what is achievable, challenge unrealistic limits and price upgraded plating, attachment hardware, packing or inspection separately. ZheCraft can review buyer drawings against practical AQL criteria before sampling, which is far cheaper than discovering inspection disagreements after 5,000 finished pieces are packed.
